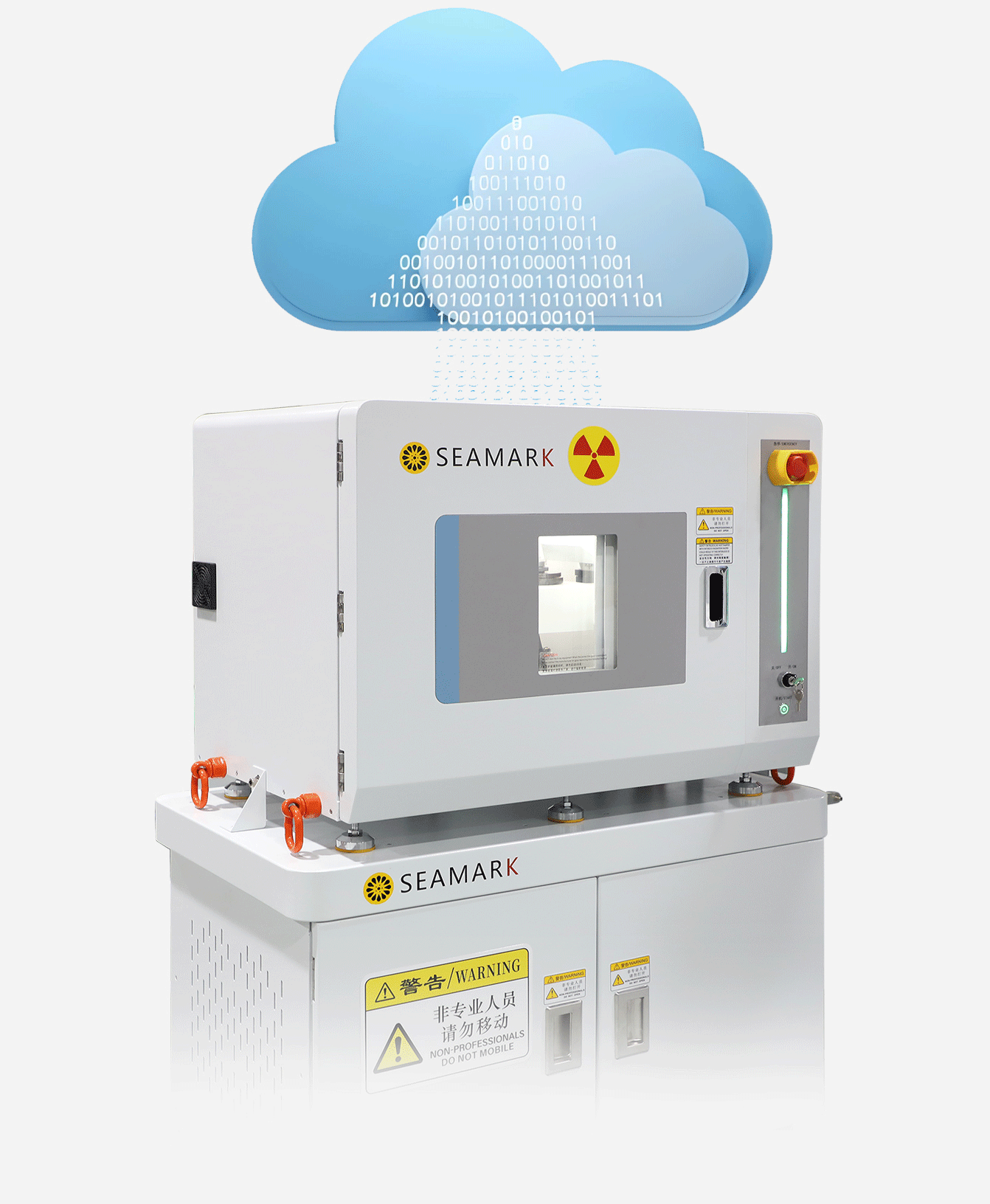

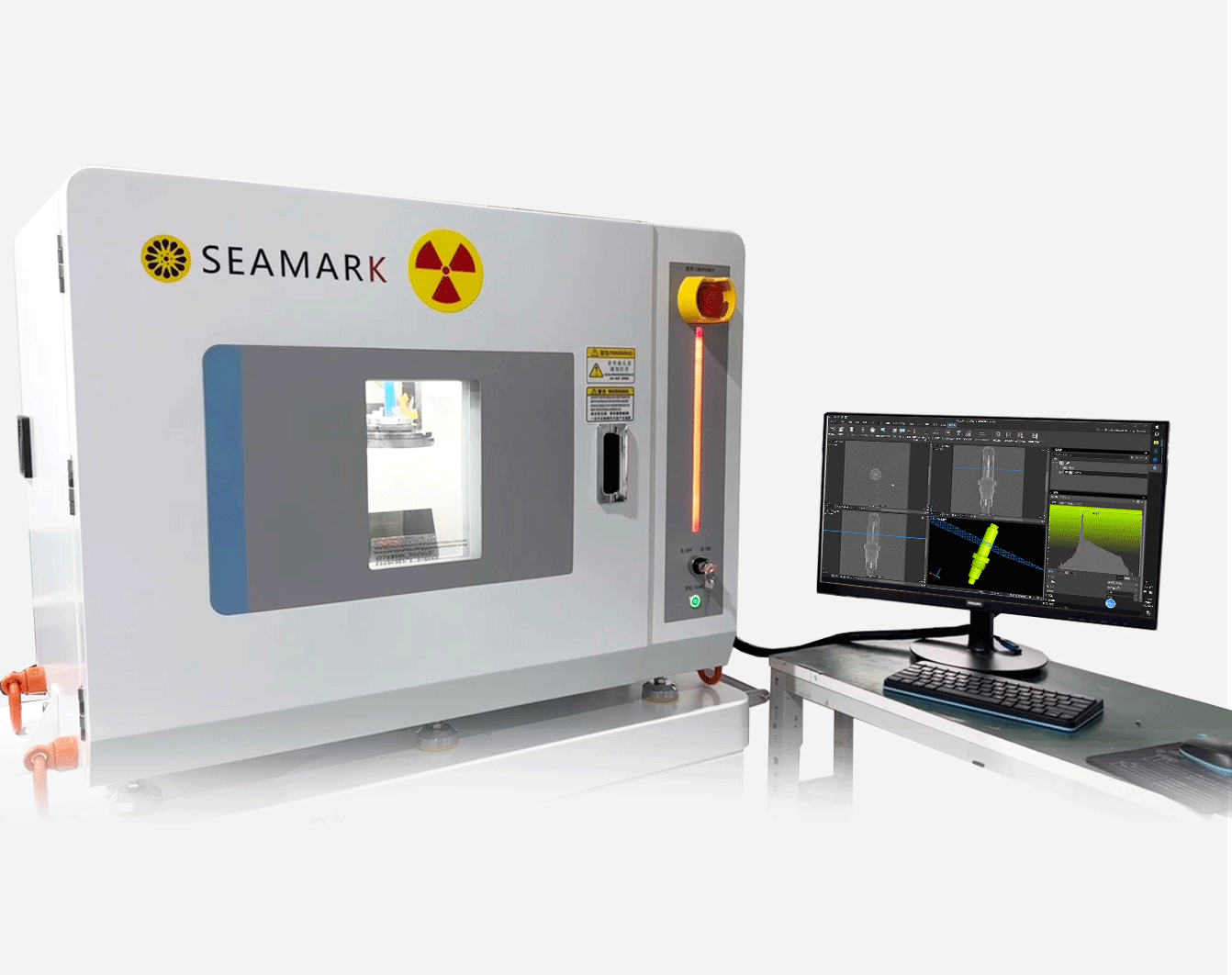

Designed specifically for small-sized samples, the system features easy installation and high portability, making it suitable for both laboratory analysis and on-site inspection.

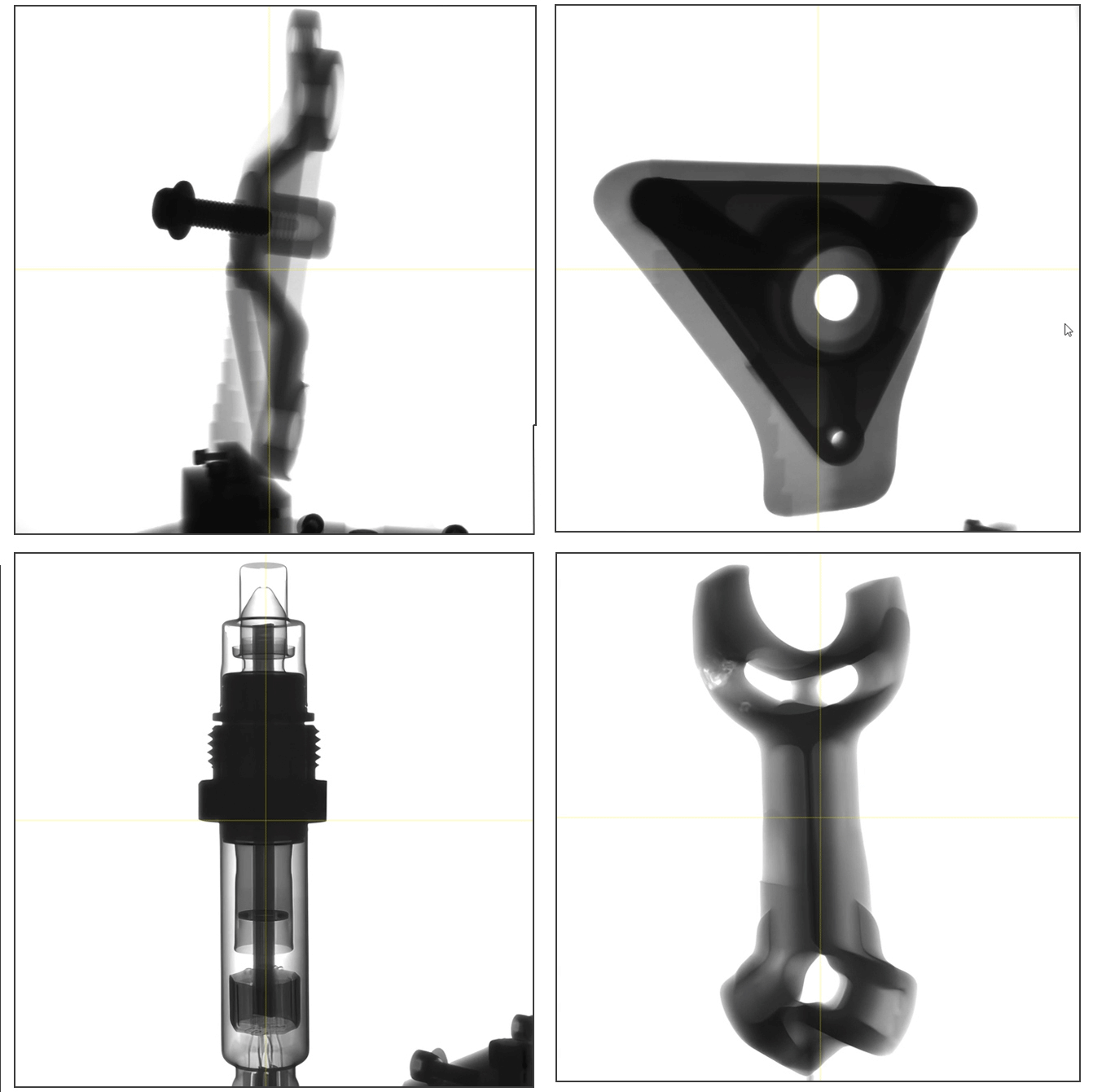

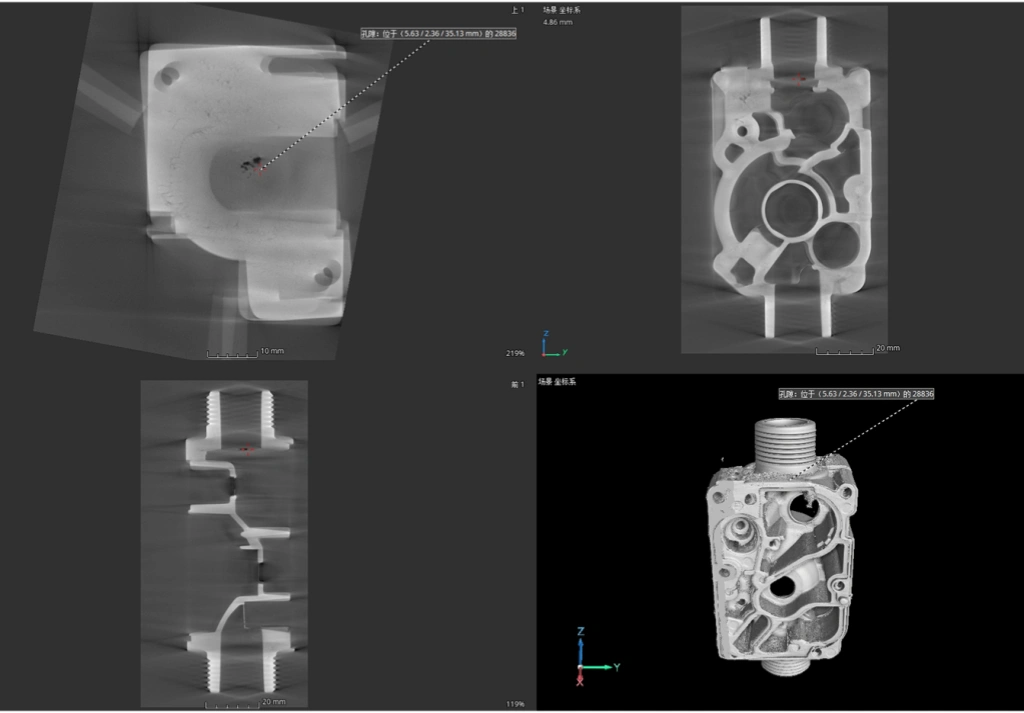

Equipped with in-house developed professional software, the system supports 360° inspection from arbitrary viewing angles. It delivers a spatial resolution of 5 μm and an optimal defect resolution of up to 3 μm, enabling applications in quality inspection, 3D measurement, and non-destructive analysis.
With integrated qualitative and quantitative analysis software, the system accurately captures microscopic internal features of samples, supports multi-angle measurement and analysis, and effectively enhances product quality inspection capabilities.
Easy to install and relocate, suitable for laboratory analysis applications
Supports both cone-beam CT and helical CT imaging modes

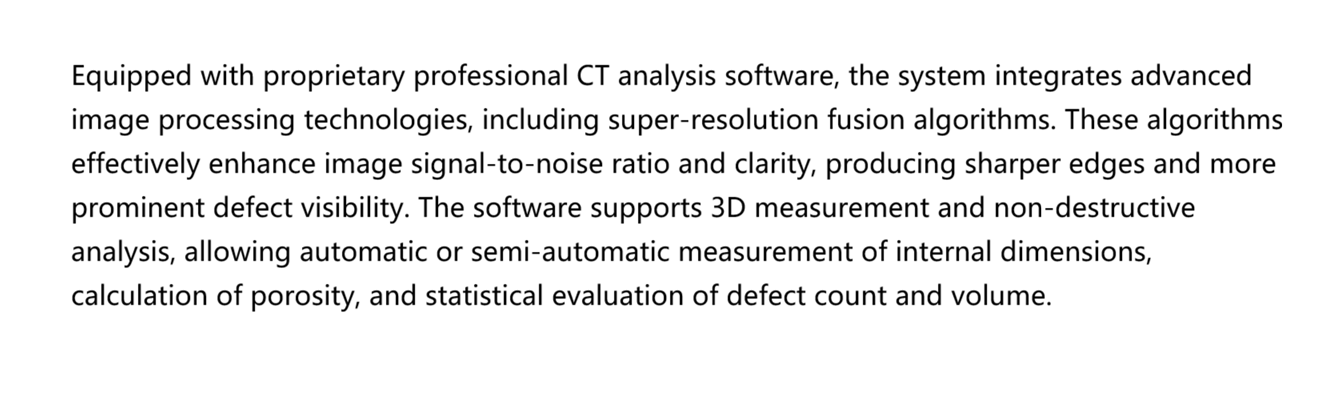

Equipped with innovative, in-house developed intelligent visualization inspection software and CT analysis software
Image fusion and super-resolution technologies enhance defect features and improve inspection clarity
| Model | Desktop Compact CT | |
|---|---|---|
| X-Ray Tube | Type | Reflection-sealed micro-focus X-ray source / Transmission-sealed micro-focus X-ray source |
| Tube Voltage Range | 0-130KV/60-110KV | |
| Tube Current Range | 10-300μA | |
| Maximum Output Power | 39W/30W | |
| Flat Panel Detector | Type | Amorphous silicon flat panel detector (optional) |
| Pixel Matrix | 1536x1536 | |
| Field of View (FOV): | 130mmx130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| A/D Conversion | 16bits | |
| Equipment Specifications | Sample Area | 200mmx200mm |
| Spatial Resolution | 5μm | |
| Optimal Defect Resolution | 3μm | |

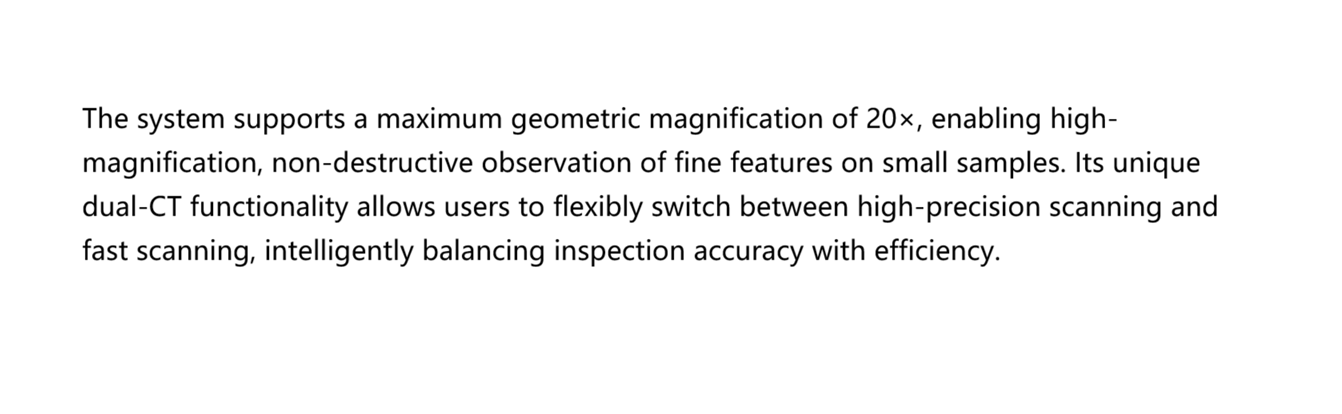

| Maximum Geometric Magnification | 20X | |
| Input Power | 220V 7A 50-60HZ | |

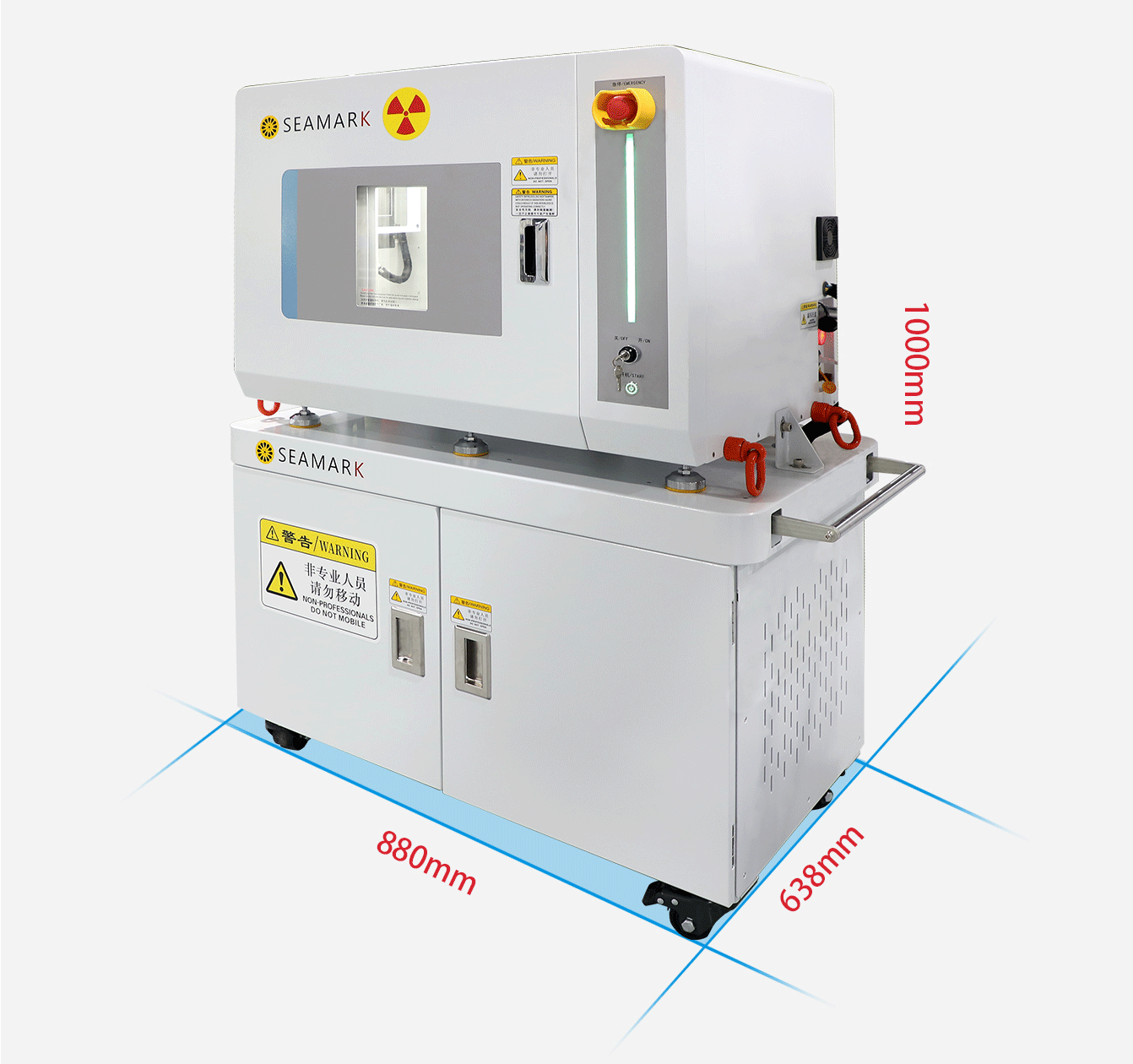

| Dimensions | L1000xW638xH880mm | |
| Net Weight | 976KG |
