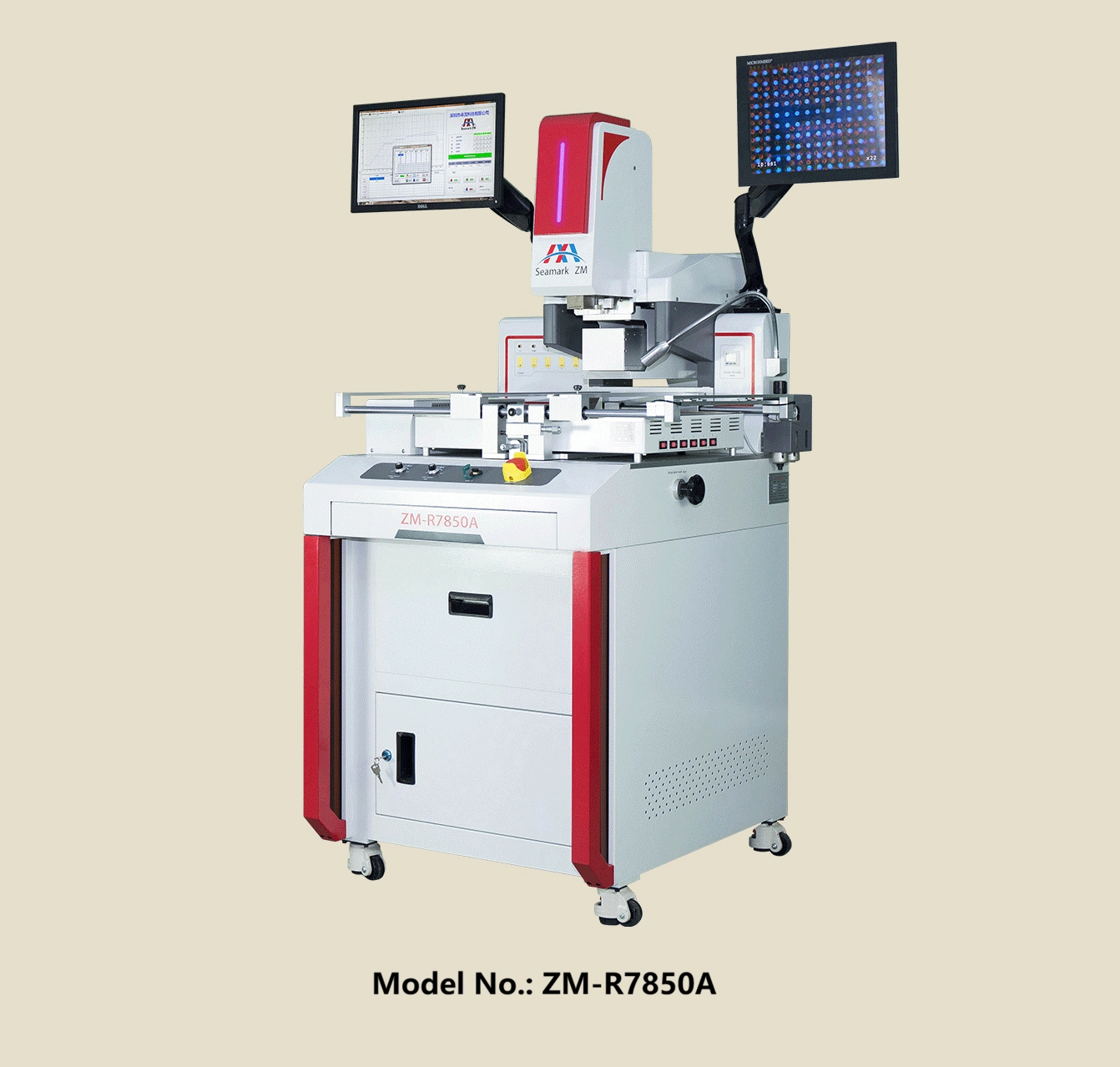

ZM-R7850A Smart Optical BGA Rework Station

ZM-R7850A Smart Optical BGA Rework Station

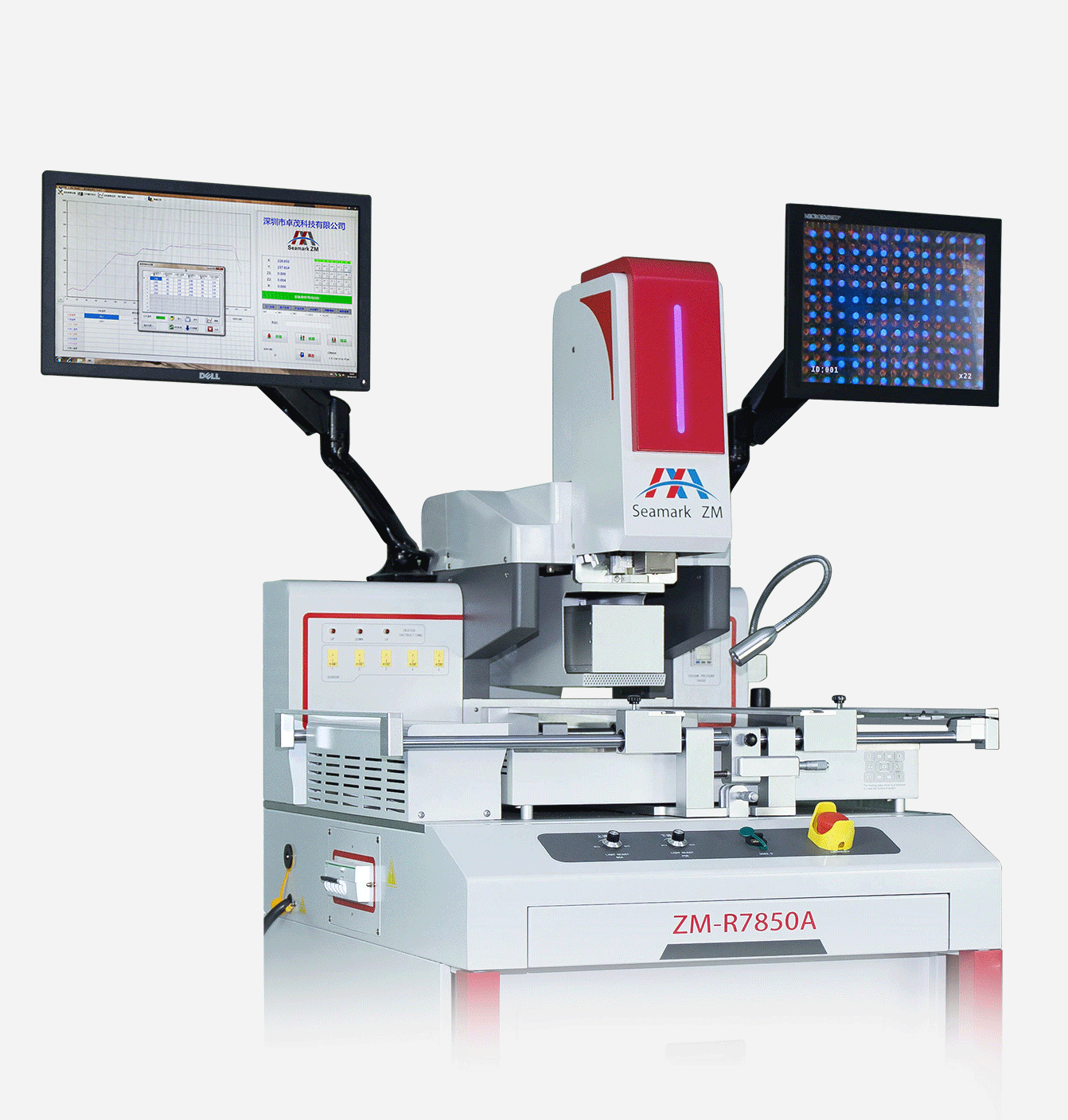

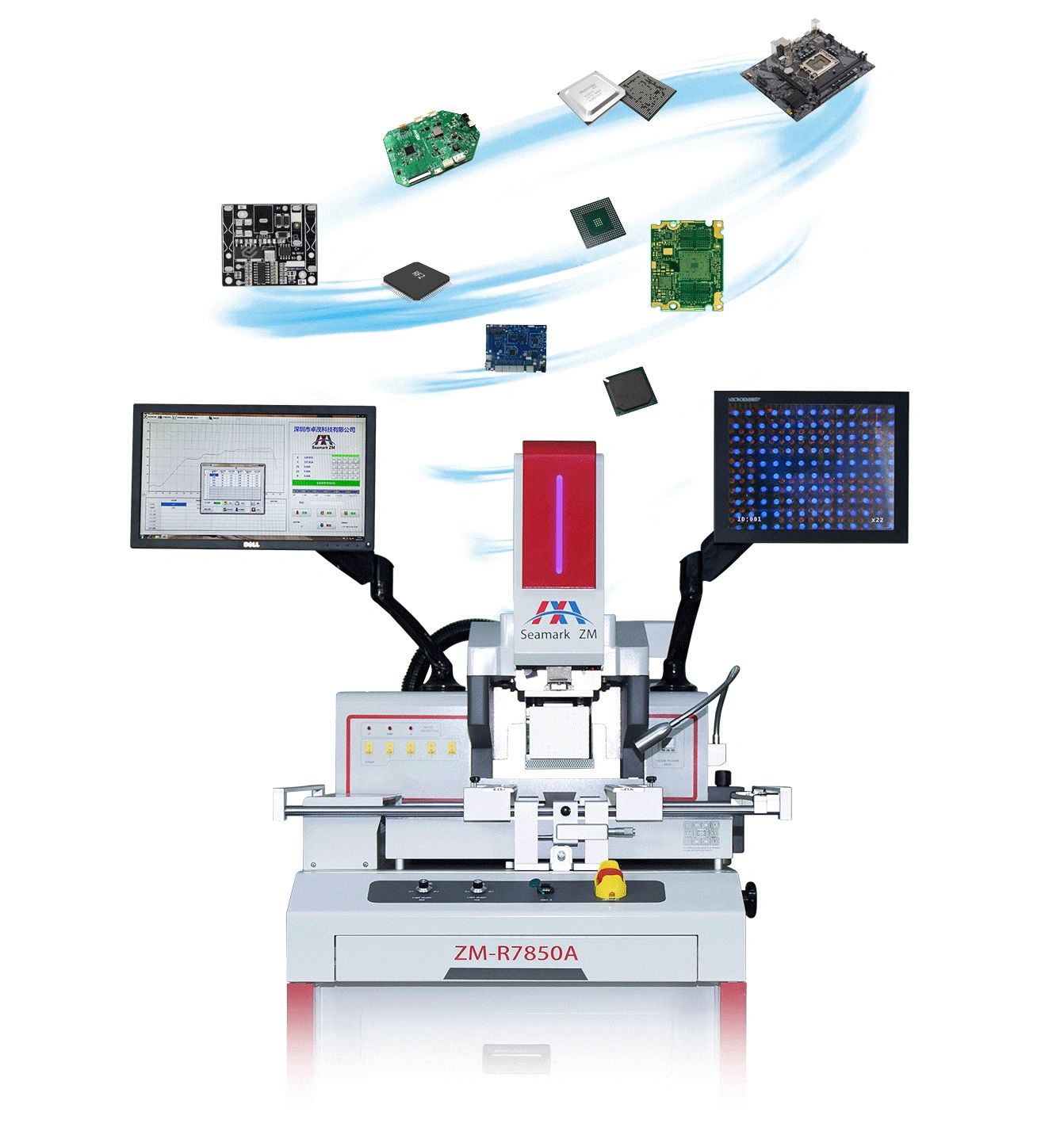

R7850A PCB smart optical BGA soldering station machine is an optical alignment automatic rework equipment. This BGA Soldering Machine has multi-functional control features, convenient temperature setting and storage, bottom heating system, smoke purification system, high-definition optical alignment module. As one of the most reputable suppliers, Zhuomao promises to produce the best SMD BGA Rework Station at a reasonable price for customers.

Functions of R7850A BGA Soldering Machine

  • 00 Multifunctional Control Features

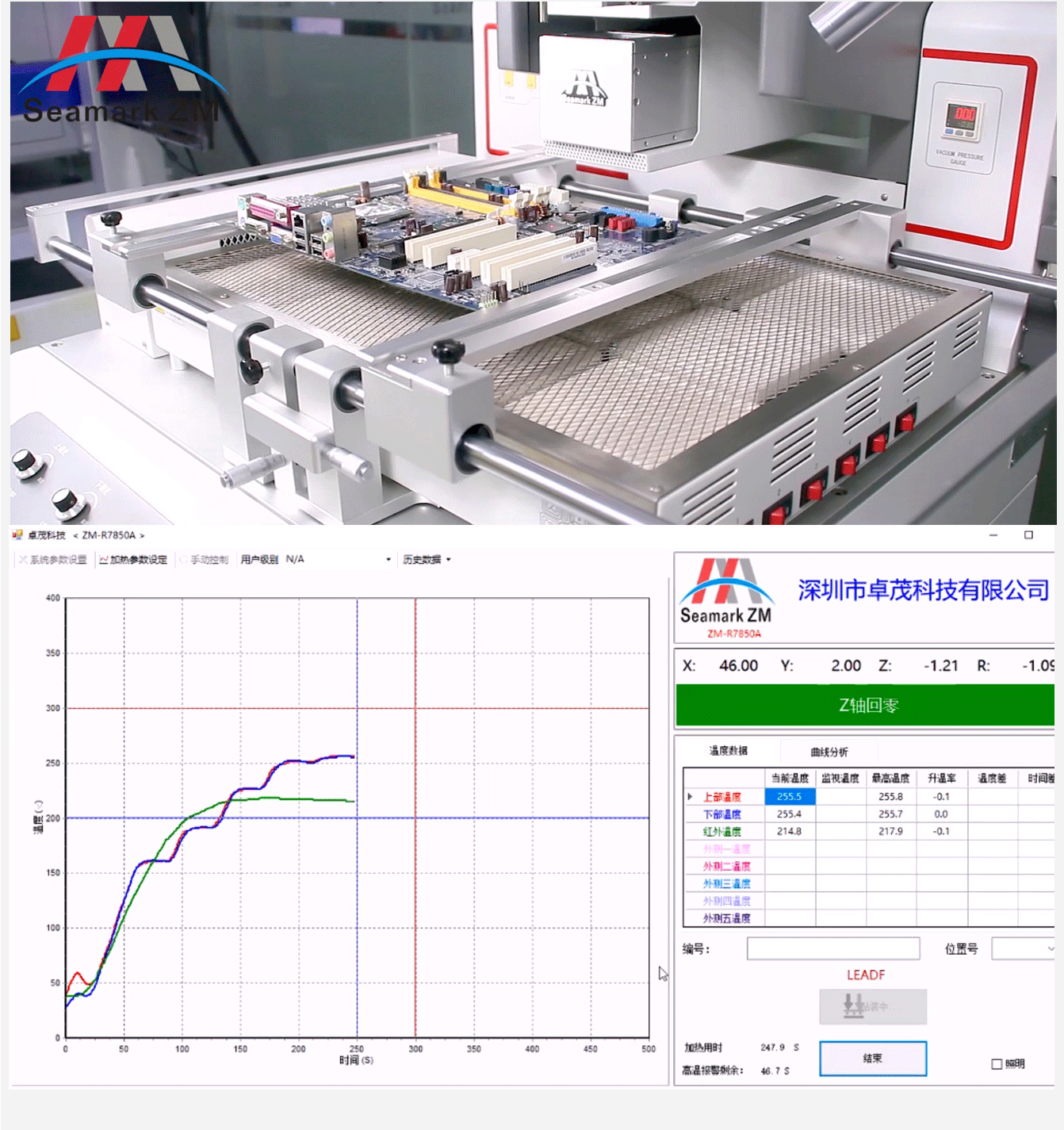

    Industrial PC control, can set a variety of operating modes, real-time display of temperature curve, each curve can be set to more than 12 segments, it can automatically analyze the curve, and automatically save the temperature curve to generate a large number of log files to facilitate the recall of historical parameters for traceability.

  • 01 Convenient Temperature Setting and Saving

    Three temperature zones independently controlled by programming, convenient and quick setting of temperature parameters and temperature saving records, the top zone uses ceramic heaters, built-in vacuum tube is used for chip adsorption, electric control 360 degree rotation alignment, with pressure protection device, dual over-temperature protection and alarm function, software design has encryption and foolproof functions.

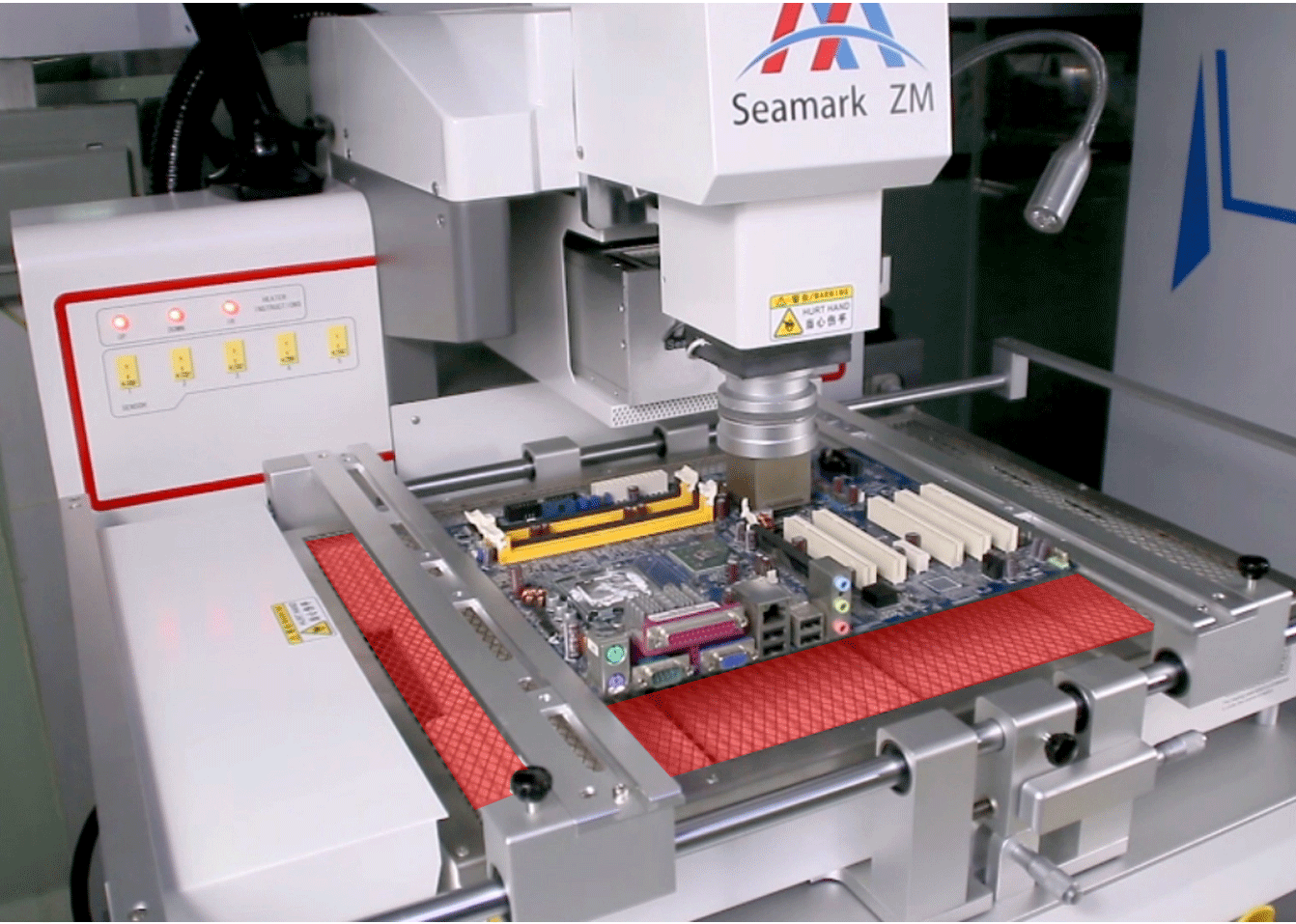

  • 02 Bottom Heating System

    The medium-wave ceramic infrared heating plate imported from Germany is adopted, and the bottom temperature zone can be independently heated to adjust the distance from the PCB like a infrared BGA rework station. Fast temperature rise and high temperature control accuracy can effectively solve PCBA preheating and rework temprature.

  • 03 Smoke Purification System

    The built-in three-level smoke purification system can filter and purify the toxic gas generated in the work, effectively protecting the environment.

  • 04 HD Optical Alignment Module

    Imported HD CCD (2m pixels) optical alignment system, through the PC control system X/Y automatically moves the optical lens alignment, using 15' HD industrial display (1080P 16: 9) and 18.5' SD display operation. Equipped with automatic feeding device to realize feeding and receiving automatically.

As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know different types of BGA repair machines and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

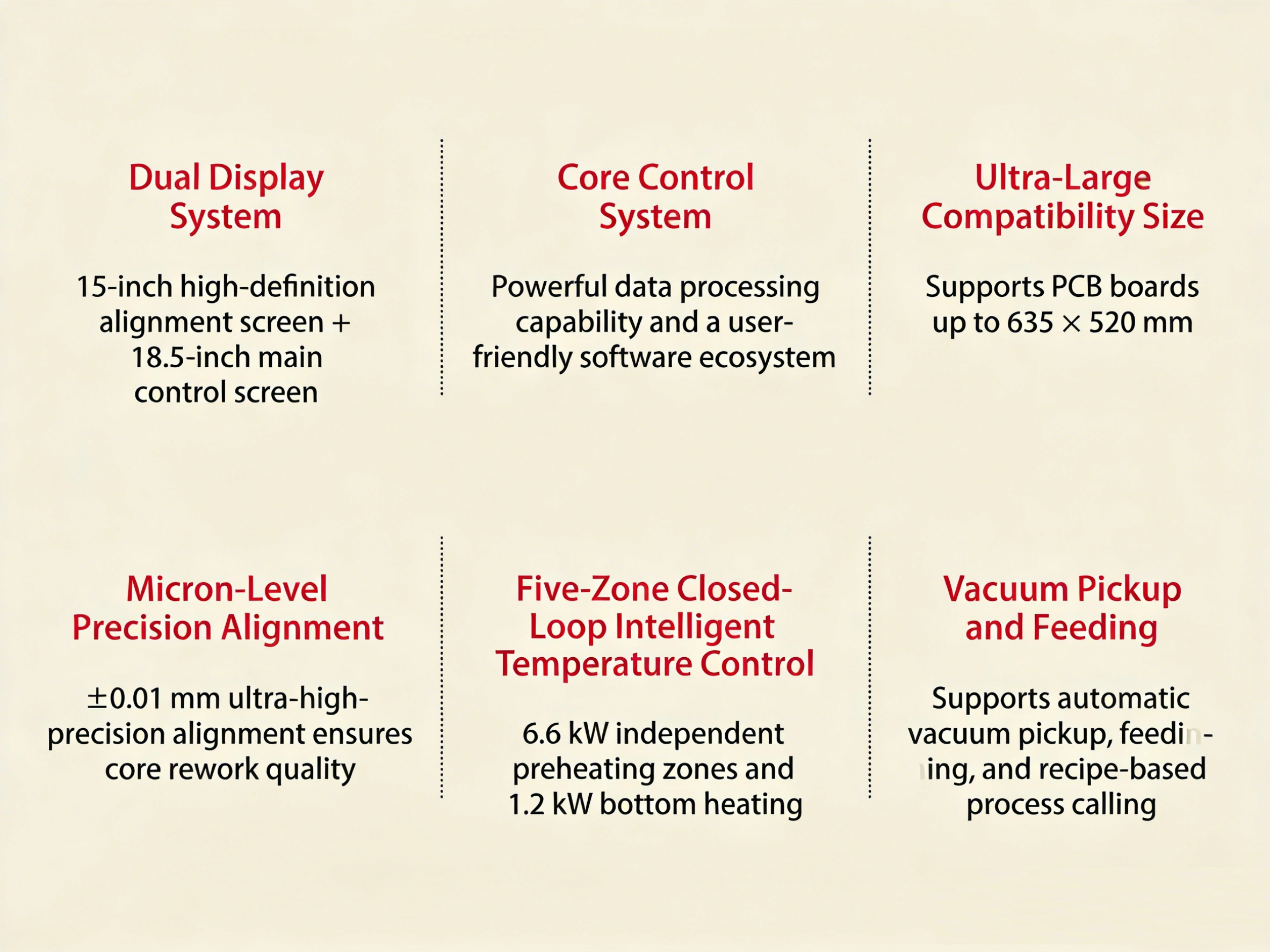

Specification of ZM R7850A BGA SMD Rework Station


Power SupplyAC380V±10%  50/60HZ
Power9.85KW(Max),Top heater(1.45KW)                                 Bottom heater (1.2KW),IR Preheater (6.6KW), Other(0.6KW)

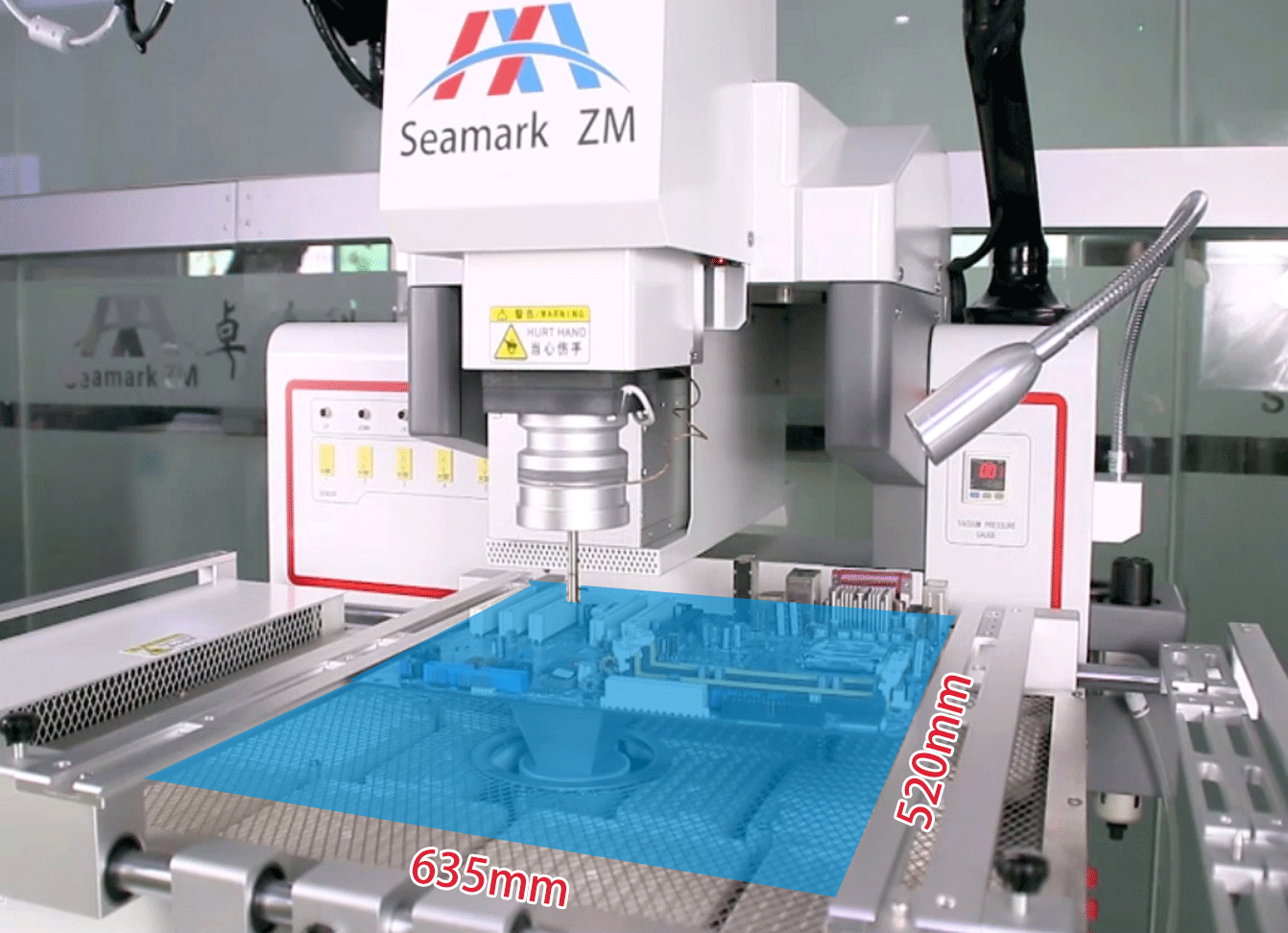

PCB Size635*520mm(Max);6*6mm(Min)
BGA Chip Size80*80mm(Max);2*2mm(Min)
IR Heater Size565*435mm
Motion ControlX/Y/Z
Temperature Sensor5 Pcs
Control SystemIndustrial PC+ Motion control system
Display System15" HD industrial display ( 1080P  16:9)+18.5" SD display
Alignment System2 Million Pixel HD digital imaging system, automatic optical zoom with laser  red-dot indicator
Vacuum AdsorptionAutomatic
Alignment Accuracy±0.01mm
Temperature  ControlK-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding DeviceYes
PositioningV-groove with universal fixture (shaped fixture can be customized)

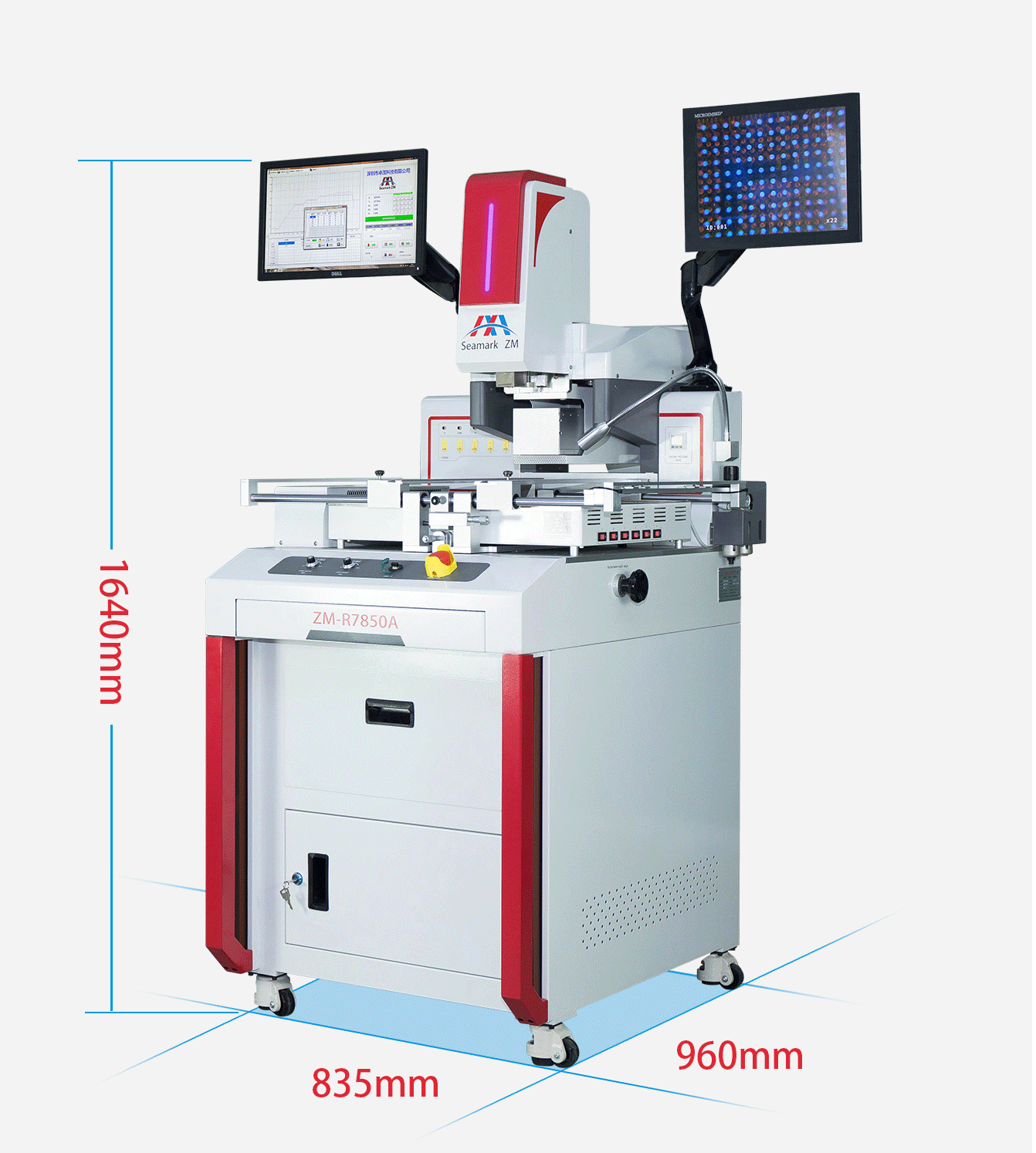

DimensionsL835*W960*H1640mm
Weight218.5KG
