Seamark XC1000 Offline Reel Counter: 99.99% Accuracy & 70% Labor Cost Reduction

In modern SMT intelligent manufacturing and warehouse management, material counting efficiency and accuracy directly impact production line turnover and inventory control.

When dealing with ultra-small components and high-volume materials, traditional manual counting is not only time-consuming and labor-intensive but also highly prone to errors.

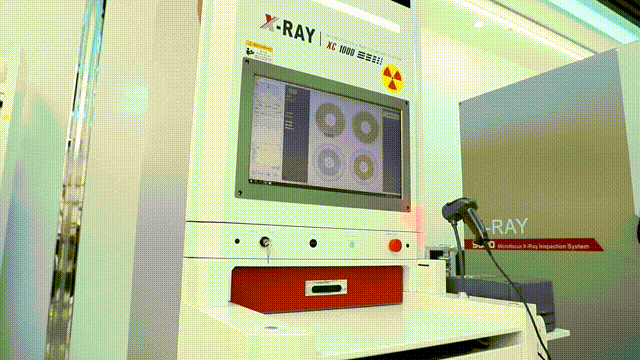

The Seamark XC1000 X-ray Offline Automatic Reel Counter addresses these challenges by combining X-ray imaging technology with AI-powered algorithms, delivering a fast, precise, and fully intelligent counting solution for electronics manufacturers.

1. Four-Reel Synchronous Detection with AI Precision Counting

Powered by a self-developed AI intelligent counting algorithm, the XC1000 achieves up to 99.99% counting accuracy, effectively eliminating human errors such as omissions and miscounts.

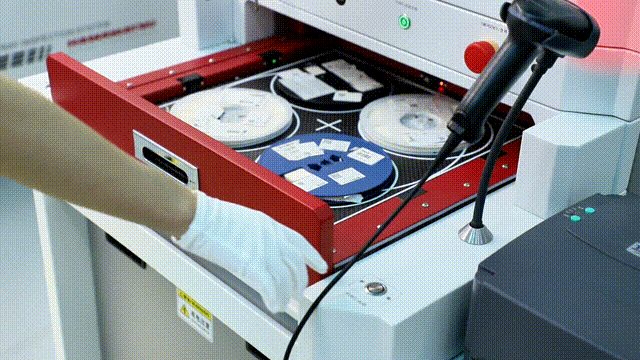

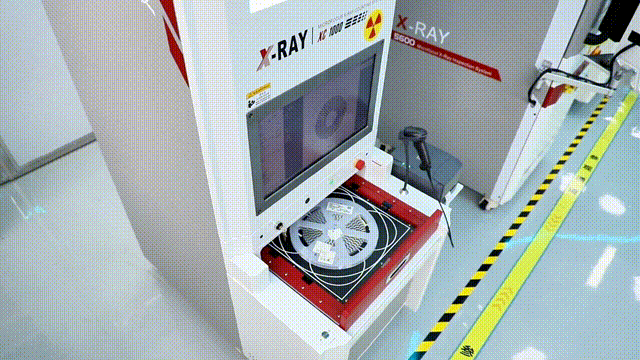

The system supports SMD components from 01005 and above, and is compatible with a wide range of packaging types, including:

• 7–15 inch reels

• Tray packaging

• Loose materials

• Moisture-sensitive devices (MSD)

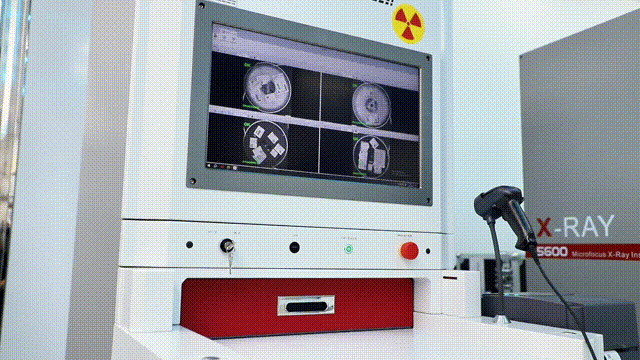

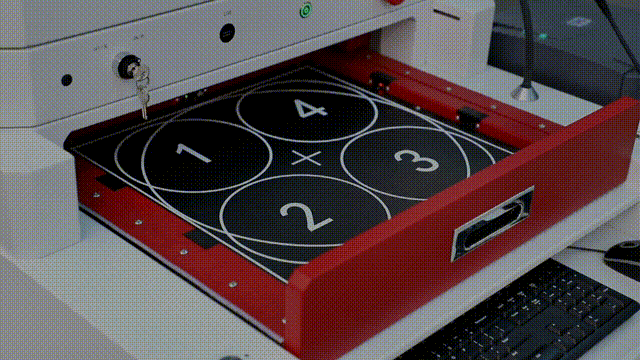

Its four-reel synchronous detection design significantly boosts throughput, enabling manufacturers to reduce labor costs by over 70%.
Operators can become proficient with the system in just 15 minutes of training, minimizing onboarding time.

2. Massive Material Database with Continuous AI Learning

The XC1000 is equipped with a comprehensive material database containing over 120,000 standard component records, and supports identification of 30+ special packaging formats.

Through continuous cloud-based image data updates, the system enables weekly AI model iteration, ensuring:

• Fast adaptation to new materials

• No need for frequent manual calibration

• Consistent high-accuracy performance

This makes the XC1000 highly suitable for dynamic production environments with frequent material changes.

3. High-Resolution Imaging & Smart System Integration

The system adopts a reflection-sealed micro-focus X-ray source (33μm / 100μm) combined with an amorphous silicon flat panel detector, delivering:

• High-definition imaging

• Stable detection performance

• Reliable counting even for dense or complex components



For smart factory integration, the XC1000 comes standard with:

• High-precision barcode scanner

• TSC industrial label printer



It seamlessly integrates with MES, ERP, and WMS systems, enabling:

• Real-time data synchronization

• Automatic inventory updates

• Instant label printing

• Full warehouse data traceability

4. Compact Design with Enhanced Safety Protection

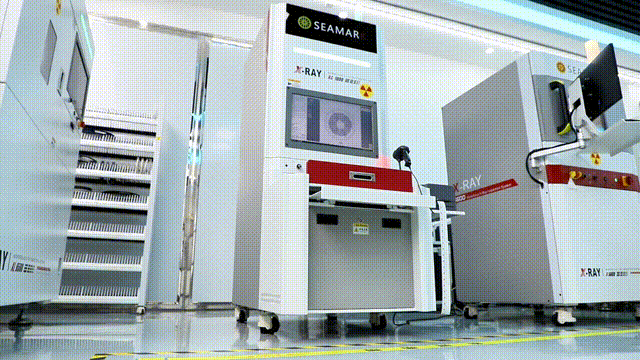

Designed with an ergonomic industrial structure, the XC1000 occupies only ~1 m² footprint, making it easy to deploy across different production areas.

The system features a triple safety protection mechanism, including:

• Light curtain protection

• Safety interlock system

• Mechanical limit protection

This ensures both operator safety and stable machine operation in high-efficiency environments.

Upgrade Your SMT Material Management with XC1000

With its combination of high accuracy, intelligent automation, and seamless system integration, the Seamark XC1000 has become a reliable solution for SMT smart warehousing and inventory optimization.

If you are looking to reduce labor costs, eliminate counting errors, and improve operational efficiency, the XC1000 is an ideal choice for your production line.
