A useful BGA rework temperature profile measures the thermal conditions that matter to the solder joints, the package and the surrounding assembly. A thermocouple resting on the package top cannot, by itself, prove that the coldest hidden joint has reflowed. Sensor position and attachment are therefore part of the process definition, not minor details added after the heating recipe is chosen.
Profile development should establish which locations heat first, which lag, and whether all required limits can be met in the same cycle. When evaluating a BGA rework temperature profile, retain a sensor-location map with the recorded traces so another technician can understand what was actually measured.

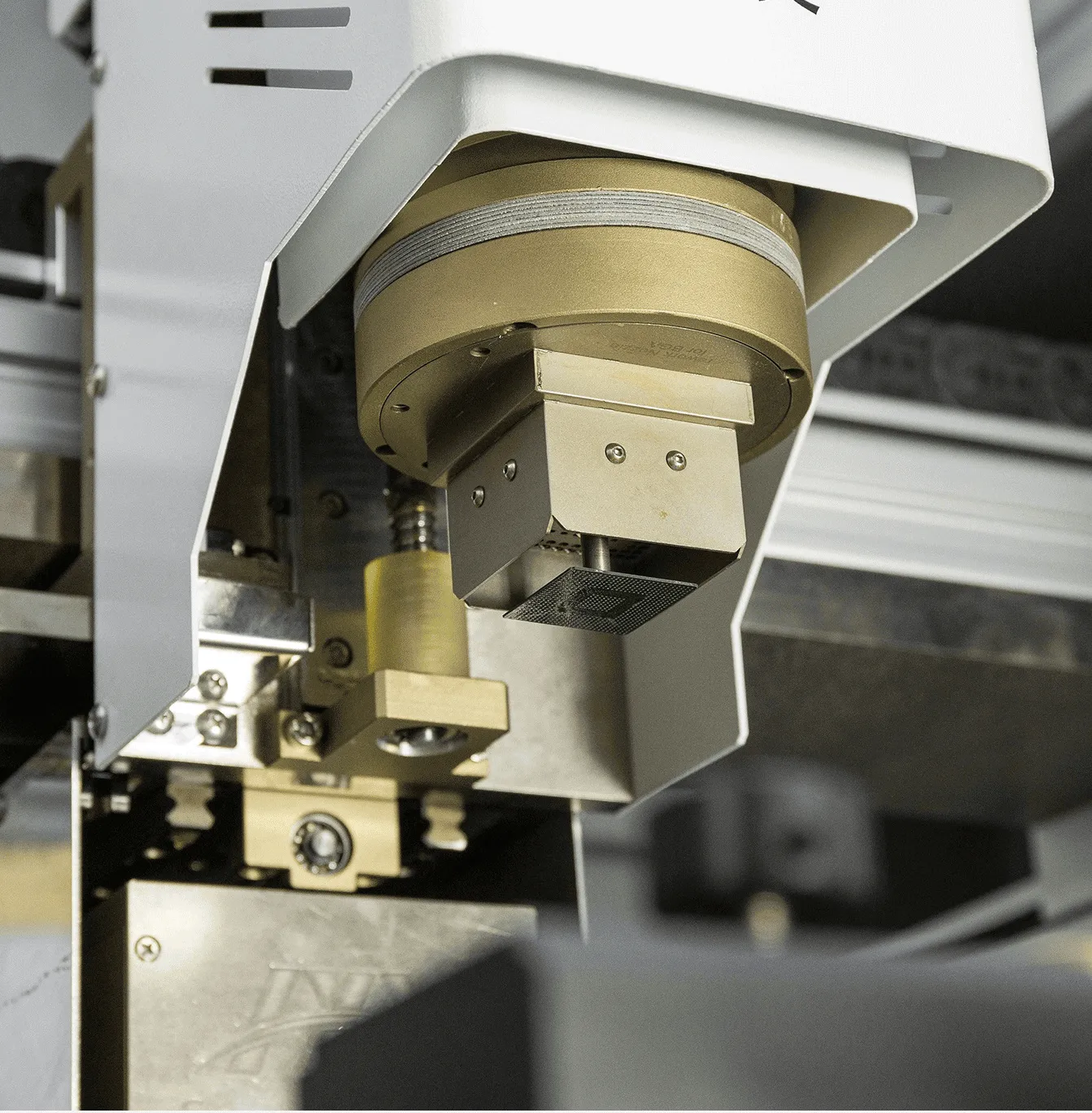

Place sensors according to the questions the profile must answer. Joint-level measurements assess solder heating; a package-top sensor checks body exposure; a board-underside sensor helps characterize preheating; and sensors on nearby components assess unintended heating. These channels provide complementary information and should not be labeled interchangeably.
The expected coldest location may be beside a substantial copper connection, beneath a large package region or near a feature that changes airflow. The hottest location may be an exposed edge. Map more than one plausible extreme during development rather than assuming the center is always coldest or that every corner behaves alike.
For hidden-joint measurement, use a representative development assembly and an established access method. Depending on board construction, this may involve an instrumented joint or access through a sacrificial board. Drilling or inserting a sensor can change the assembly, so assess that disturbance and document it. Do not modify a production board simply to obtain a convenient trace.
Measurement location | Main question | Important limitation |
Representative solder joint | Did this joint meet the process window? | One joint does not characterize the entire array |
Package top | Was package-body exposure acceptable? | It does not directly measure hidden solder |
PCB underside near the site | How did preheat reach the board? | It differs from the joint interface |
Vulnerable neighboring component | Was collateral heating controlled? | Position must match the relevant part limit |
Route wires so they do not obstruct the nozzle, lift mechanism or board supports. Photograph the installed sensors before the run. A channel name such as “TC1” is much less useful than a recorded location and attachment description.
A thermocouple responds to its own junction temperature. What that represents depends on contact, local airflow, radiation and heat conducted through the wires. A bead suspended above the board may primarily follow the surrounding hot gas instead of the surface the operator intended to monitor.
The package top, package substrate and hidden joints follow different thermal paths. Their temperature differences can change throughout the cycle, so a single fixed offset is rarely justified without correlation data for that exact setup. A surface trace that resembles a familiar profile is not evidence that the joint trace matches it.
The equipment's displayed BGA rework temperature is another separate quantity. It may represent a heater-control sensor or a programmed setpoint rather than an external sensor at the assembly. Identify each displayed value before comparing it with a component or solder requirement.
During process development, correlate accessible monitoring points with the difficult-to-reach joint measurements. That correlation can support a practical routine monitoring method, provided the assembly, fixture and heating conditions remain within the validated scope. If a board revision changes copper distribution, the old relationship needs review.
An installation profile and a removal profile also answer different process questions. Both require adequate solder heating and acceptable component exposure, but replacement flux, solder deposition and the pickup sequence can change the operation. Do not transfer a measurement claim between the two solely because the same station is used.

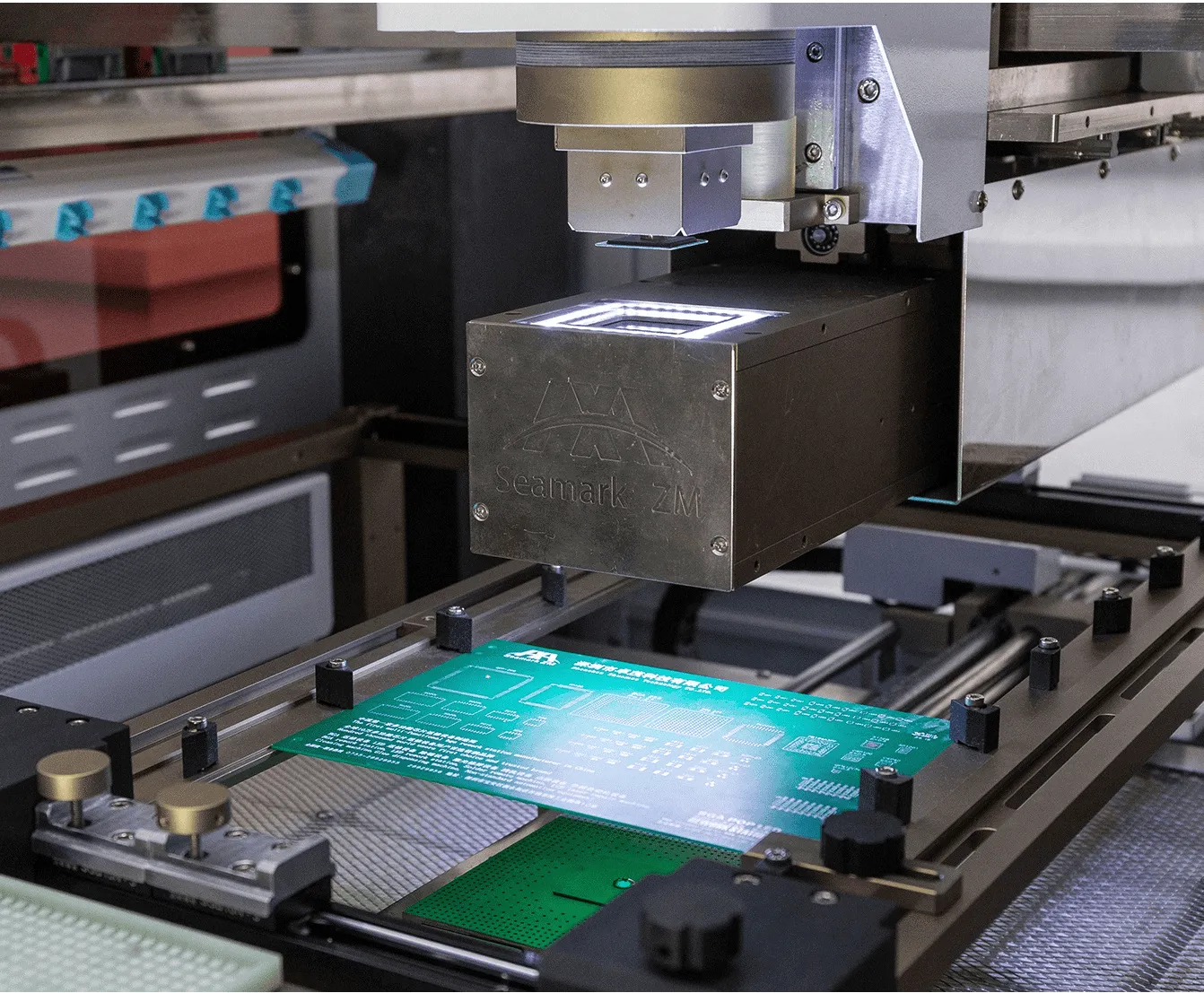

Choose an attachment method that keeps the junction at the intended location through heating and cooling while introducing as little disturbance as practical. The method must suit the surface, the required temperature range and the purpose of the measurement. Attachment convenience alone is not an acceptance criterion.
Tape can secure a wire, but securing the wire is not the same as making reliable bead contact. A bead under a large tape patch may experience a changed local heat path; a poorly restrained bead may lift as the board expands. Where tape is used, check the contact and record its placement.
A suitable high-temperature adhesive can stabilize a surface sensor, but excessive material can slow its response or insulate it. An instrumented solder joint provides more direct information about that joint, yet the sensor and access arrangement must minimize disturbance to the solder geometry and heat flow. Follow an established profiling method for the chosen assembly.
Use fine wires appropriate to the measurement and protect them from repeated sharp bending. Add strain relief away from the junction and allow enough slack for thermal movement. Keep the wire path consistent between repeat trials so a routing change does not become an unrecognized process variable.
Before heating, confirm channel identity, polarity, sensor type and reasonable ambient readings. A BGA repair station with external measurement channels is useful only when those channels are correctly configured and connected to sensors whose locations are known.
Several errors can produce convincing but misleading traces. The junction may detach partway through the run, a channel may be assigned to the wrong position, or the acquisition system may be configured for the wrong thermocouple type. A sudden change in slope deserves investigation before it is interpreted as a change in board behavior.
Direct hot-air exposure is especially important. A bead that loses surface contact can rise quickly toward the air temperature and suggest that solder has heated faster than it actually has. Conversely, a bulky attachment can lag and encourage unnecessary additional heating.
Check sampling and data handling as well. The recording must resolve the relevant heating and cooling events, and all compared channels should share a known time basis. Excessive smoothing can conceal a short peak or obscure a sensor problem. Preserve the raw trace alongside any processed graph used for review.
Calibration and setup verification address different uncertainties. Calibration checks instrument or sensor response under defined conditions; it does not prove good contact on the PCB. Similarly, repeatable attachment cannot compensate for an incorrectly configured logger. A defensible measurement process deals with both.
If one channel differs strongly from the others, do not discard it simply because it complicates the recipe. First determine whether the difference represents a real thermal extreme or a measurement fault. That investigation may reveal the very cold joint or vulnerable neighboring component the development run was intended to find.
A reliable profile has identified measurement locations, stable attachments, verified instrumentation and repeatable results on representative hardware. Its acceptance criteria come from the relevant solder process, package instructions and assembly limits. A smooth temperature trace or a peak within limits does not, by itself, validate the complete profile.
Evaluate the coldest measured joint and the hottest measured sensitive location together. The process must meet the required joint conditions without exceeding applicable component exposure limits. If those requirements do not overlap, reconsider the heating distribution, fixture or access rather than approving a compromise without evidence.
Repeat trials should begin from comparable initial conditions. Record the board starting temperature, support arrangement, nozzle, airflow and heater settings. A rework system recipe is only one part of that setup; the same saved file can produce different results on a differently clamped or already warm board.
Approve the profile for a defined assembly and configuration, then specify change triggers. These may include a new PCB revision, nozzle replacement, altered shielding or fixture changes. The BGA rework station temperature profile should remain linked to that controlled configuration and the inspection results that support its use.
Usually not for developing a new process. Multiple locations help distinguish joint heating, package exposure and collateral effects. Routine monitoring may use fewer channels only when an appropriate correlation has been established.
A top measurement can monitor package-body temperature, but it does not directly establish the hidden joints' thermal conditions. Use joint-level development data to understand the relationship.
Not necessarily. A joint sensor and a surface sensor have different requirements. Keep each method appropriate, documented and consistent for its intended measurement.
Possible causes include starting temperature, board construction, clamping, airflow or sensor attachment. Check the complete setup before changing the heater program.
Trust a BGA rework temperature profile when the sensors measure identified locations and the results remain valid across representative runs. Document joint access, attachment, instrumentation and the full station setup. Use the coldest joint and hottest sensitive location to assess the process window together.
