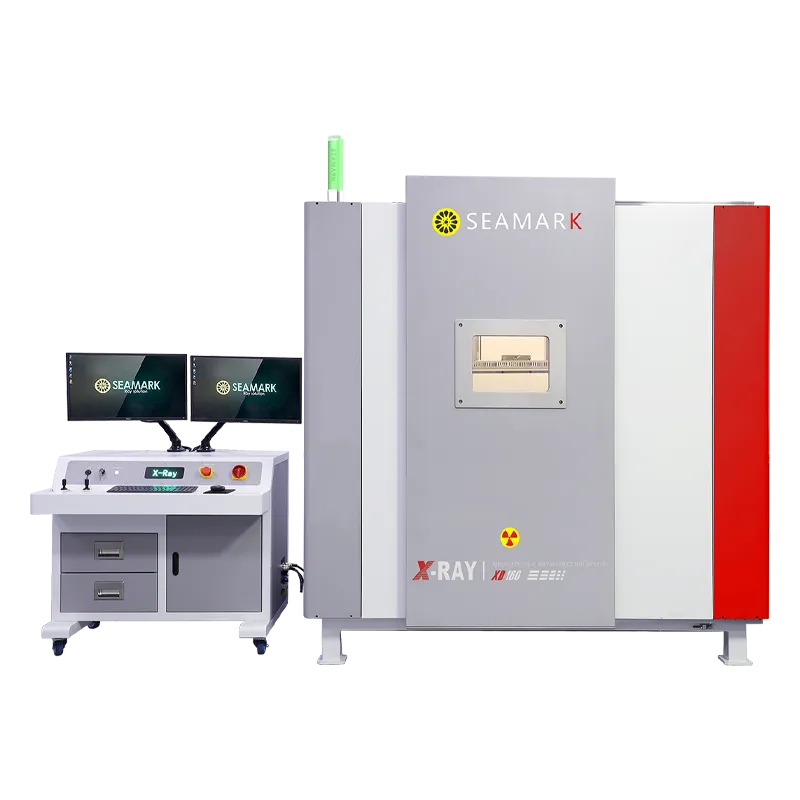

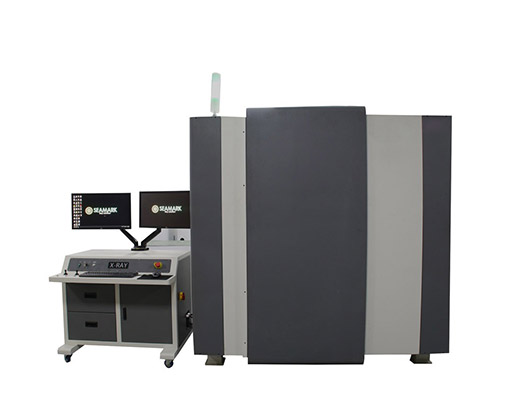

XD160 X-Ray Precision Casting Inspection Equipment

X5601 is a small precise microfocus X-Ray inspection equipment, suitable for R&D enterprise, laboratories, quality inspection rooms, etc.


It is the first choice for electronics X-Ray machine of small parts.


As a reputable and reliable supplier, our industrial X-Ray machine price is very reasonable and affordable for our customers.

Features of X-Ray Precision Casting Inspection Equipment / XD160

  • The results can clearly detect sand holes, cracks and other defects inside the aluminum casting.

  • The operation is simple, and the detection standard setting of new products only takes 5~10 minutes.

  • Programmable, measurable, and picture-saving functions based on ergonomics.

  • The door of the Seamark product optics is equipped with an interlock function, and X-Ray cannot work without closing any door.

  • 360 ° rotation and movement of multi-functional loading platform.

  • Multi-purpose, customizable tooling operation.

  • C-type swing arm six-axis linkage detection method, no dead angle detection.

  • Real-time dynamic imaging is realized during the inspection process, and the display realizes monitoring and presentation.

  • Multi-modular observation point setting.

Specification of XD160 X-Ray Precision Casting Inspection Equipment


XD160
X-Ray Tube Source Specification
TypeReflective Sealed Micro-Focus X-Ray Source
Voltage160KV(200KV optional)
Operating Voltage Range60-160KV
Operating Current Range200-5000 μA
Max Output Power400W
Micro Focus Spot Size400μm




Flat Panel Detector Specification
TypeAmorphous silicon flat panel detector
Pixel Matrix2816×2816
Field of View433.7mm×433.7mm
Resolution3.24Lp/mm
Frame(1×1)1.2fps
A/D Conversion Bit16bits




DimensionsL2030mm×W1600mm×H2100mm
Input Power220V  10A  50-60HZ
Max Sample Size540 mm×440mm
Net WeightApprox  3500KG
Radiation<1μSv/h
Max Tilt Angle±30 degree
