X6600 x ray inspection machine

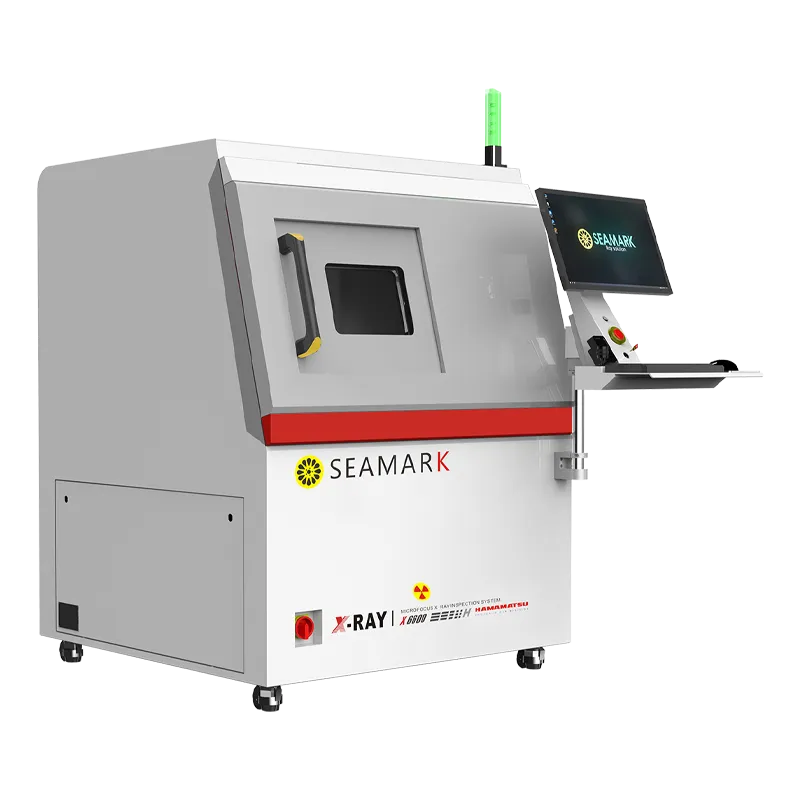

X6600 Offline X-Ray Inspection Machine

X6600 is a cost-effective general-purpose offline precision microfocus X-Ray inspection equipment. It is suitable for the inspection of various factory offline products. This AXI inspection machine has the characteristics of high magnification, multi-angle inspection, and a large-area inspection platform.

Features of X6600 Offline X-ray Inspection Machine

  • Meet the needs of the general industrial X-ray machine and have a wide range of applications.

  • A high-resolution design can obtain the best image in a very short time.

  • Infrared automatic navigation and positioning, quickly select the shooting location.

  • CNC detection mode, fast automatic detection for multi-point array.

  • Oblique multi-angle inspection makes it easier to detect sample defects.

  • Software operation developed by Seamark is simple and easy to use, low operating cost.

  • The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive.

As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.


Specification of X6600 Offline X-Ray Inspection Machine


X-Ray Tube Source Specification
TypeSealed Micro-Focus X-Ray Tube
Voltage90 KV/130KV
Operating Voltage Range40-90KV/130KV
Operating Current Range10-200 μA/300μA
Max Output Power8 W/39W
Micro Focus Spot Size5-15μm


Flat Panel Detector Specification
TypeTFT Industrial Dynamic FPD
Pixel Matrix1536×1536
Field of View130mm×130mm
Resolution5.8Lp/mm
Frame(1×1)20fps
A/D Conversion Bit16bits


DimensionsL1360mm×W1240mm×H1700mm
Input Power220V  10A/110V  15A  50-60HZ
Max Sample Size540 mm×440mm
Control SystemIndustrial PC WIN7/ WIN10 64bits
Net WeightApprox  1170KG
Radiation<1μSv/h
Max Tilt Angle65 degree


X6600 Offline X-Ray Inspection Machine Applications

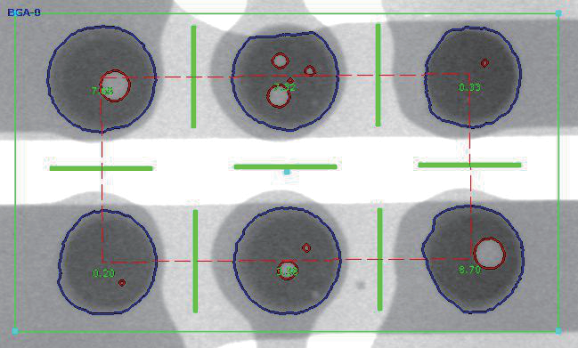

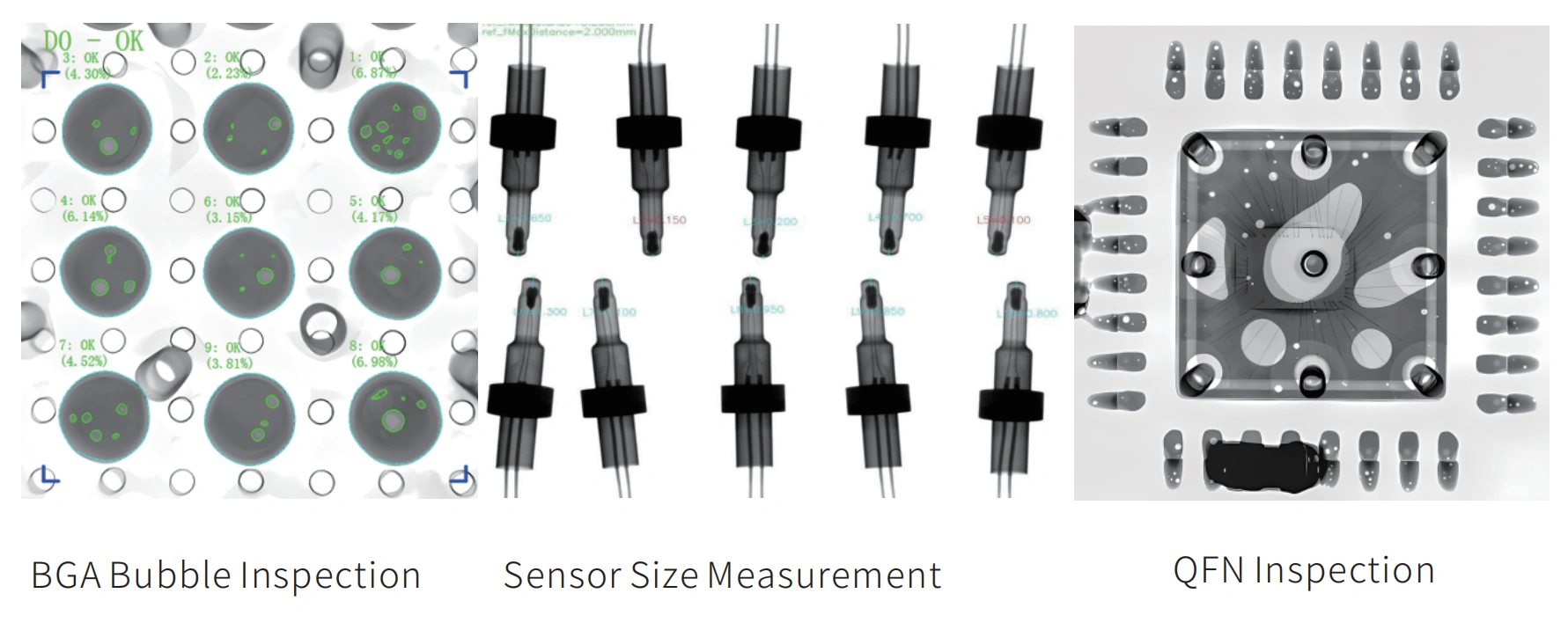

Electronics Industry: Ideal for inspecting solder joints, PCBs, and semiconductors. Its high magnification and multi-angle inspection detect small defects like voids and cracks.

Automotive Industry: Ensures the quality of critical parts like sensors and battery cells. Its large platform supports larger items in high-volume production.

Aerospace Industry: Vital for inspecting complex components like circuit assemblies, ensuring reliability and safety by detecting internal flaws.

Medical Devices: Perfect for precision inspections of implants, catheters, and pacemakers, meeting strict safety standards.

Energy Sector: Provides high-resolution imaging to detect defects in components like insulators, transformers, and solar cells.


See also X5600/X7600/X1200/XB8100/XB8200/XD160.
