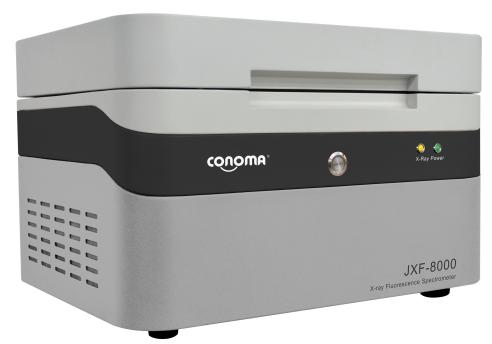

JXF-8000 RoHS Halogen-free Environmental Protection Detector

JXF-8000  CONOMA series products are high-end models of spectrometers and dual ray protection systems; Humanized operation interface; The empirical coefficient method and basic parameter method V1.0 analysis software are comprehensively applied. Elements are tested from S-U. That is, it can detect lead (Pb), mercury (Hg), cadmium (Cd), total bromine (Br) and total chromium (Cr) in the regulations, as well as chlorine (Cl) and bromine (Br) in the halogen-free directive. The well-designed open working curve function is particularly suitable for the factory process control of various materials. Compared with the traditional common instruments in the industry, this model has the advantages of rapid analysis of material anomaly identification in the current industry. It is an efficient and accurate system scheme based on fully solving customers' HSF control demands. This scheme has clear principles, feasible methods and remarkable effects.



Advantages of JXF-8000 RoHS Halogen-free Environmental Protection Detector

  • 1. Precision: open working curve, special measurement of key controlled materials in specific working areas;

  • 2. Fast: the original fast spectrogram comparison and analysis method, and the function of timely warning when supplier materials change;

  • 3. Safety: double X-ray protection (software, hardware, labyrinth design) to ensure the personal safety of operators and radiation injury caused by accidental operation;

  • 4. Large sample room design provides more space than traditional models;


  • 5. New optical path design is adopted to reduce the detection limit of chlorine (Cl) element;


  • 6. Provide an open work curve calibration platform, which can customize the detection scheme for controlling hazardous substances for users;


  • 7. The world's leading XRF analysis software integrates the analysis methods such as empirical coefficient method and basic parameter method (FP method);


  • 8. Comprehensively ensure the accuracy of test data;


  • 9. The test report output format (Excel, PDF, etc.) can be customized according to user requirements, meeting the factory's various statistical and format requirements;


  • 10. Multilingual software interface is available for selection;


Industrial applications

It is mainly used for the detection of lead (Pb), mercury (Hg), cadmium (Cd), total chromium (Cr), total bromine (Br) and other elements contained in electronic and electrical products under regulatory control. It is used for the detection of chlorine (Cl) and bromine (Br) in halogen controlled products.

Comply with global hazardous substance rules, regulations and detection methods

The JXF-8000 analyzer has been recognized as a screening tool in the process of testing consumer products to determine whether the products comply with the following global hazardous substance rules, regulations and testing methods:

• EU RoHS Directive (2011/65/EU)

• China RoHS Directive (ACPEIP)

• Japan RoHS

• ROHS Directive of Korea

• CPSIA (HR4040)

• US Halogen Free Restriction Directive

• California Proposition 65

• American CPSC-CH-E1002-08 SOP



Product introduction


"Accurate": using its own open working curve, you can make a working curve for each material that needs accurate measurement results, and truly realize that there are special working areas for testing high-risk materials of different base materials.


"Fast": Through a large number of experiments, the standard deviation of different materials at different contents is given, and a scientific mathematical model is established based on this result. A report meeting the IEC62321 standard can be given in a short time. This report meets the demand for accountability (that is, due diligence and exemption).


Material abnormality: the original full spectrum comparison function can track the supplier's material abnormality in real time and give early warning in time, which has incomparable advantages for RoHs/halogen-free and supplier control.



Instrument technical indicators

1. Instrument size: 520mm (W) * 400mm (D) * 355mm (H)

2. Sample chamber size: 420 * 320 * 65mm;

3. Test element range: elements in S-U

4. Detection range: 1ppm-99.99%

5. Lower detection limit: Pb ≤ 5ppm, Cd/Cr/Hg/Br ≤ 2ppm, Cl ≤ 50ppm

6. Type of test sample: solid, powder and liquid

7. Measurement time: fast measurement: 30 s (depending on the matrix)

Routine measurement: 100s (depending on the matrix)

8. Resolution: 145 ± 5 KeV

9. Collimator: Φ 10mm、( Φ 3mm spare)

10. Filter: automatic switching of 8 kinds of composite filters

11. CCD observation: 3 megapixel high-definition CCD

12. Input power: AC220V~240V, 50/60Hz

13. Rated power: 300W

14. Net weight: about 41.8Kg

15. Working environment temperature: 10-30 ℃

16. Relative humidity of working environment: ≤ 75% (no condensation)


 Main configuration of instrument hardware


5.1 Detection system


Type: Si PIN detector

Brand: American Amptek (all accessories are imported with original packaging)

Be window thickness: 1mil (0.0254mm)

Optimum resolution: 145 ± 5eV

Peak to back ratio of the system: ≥ 6200/1

Energy response range: 1keV~40keV推荐计数率:5000cps

5.2 X-ray tube


Voltage: 0~50 kV

Maximum current: 1.0 mA

Maximum power: 50 W

Filament voltage: 2.0V

Filament current: 1.7 A

Ray extraction angle: 12 °

Target: Mo

Be window thickness: 400um

5.3 High voltage power supply


Input voltage: DC+24V ± 10%

Input current: 4.25A (maximum)

Output voltage: 0-50KV&1mA

Maximum power: 50W

Voltage regulation rate: 0.01% (from no-load to full load)

Current regulation rate: 0.01% (from no-load to full load)

Ripple voltage: under the premise of output rated voltage, the peak value of ripple voltage is 0.25% of the maximum output voltage.

8-hour stability: ≤ 0.05%

5.4Inching platform


The object carrying test platform, with the fine adjustment device outside the instrument, and combined with the 3 million pixel high-definition CCD, can accurately position the test sample to prevent the sample from being placed properly and closing the sample cover to generate vibration, which will change the test position, leading to inaccurate testing;

5.5 CCD camera


The 3 megapixel high-definition CCD camera can effectively observe the status of the test area in real time, and take photos of materials as part of the test report.

5.6 Heat dissipation system


The efficient three-dimensional cooling system can greatly provide the reliability and stability of the instrument.

5.7 Radiation safety system


Triple ray protection system (software, hardware, labyrinth design),


Automatic warning system for cover opening test


Instrument software configuration

1. Software interface


2. Functional features

1. It can accurately test the five harmful elements and halogen-free requirements (Pb, Cd, Hg, Br, Cr, Cl) in the RoHS directive;


Preset multiple working curves, covering metal, PE, PVC, aluminum magnesium, soldering tin, copper alloy and other substrate types, to meet the user's requirements for routine measurement;


2. Provide an open working curve platform. Users can freely configure working curves and add standard sample data at will to meet the requirements of higher testing degree or adapt to the later expansion of environmental protection instructions;


3. Precise data processing method: The filter system accurately configured based on the basic parameter method greatly improves the peak to back ratio, and combines a series of advanced spectral processing methods to greatly improve the detection accuracy of characteristic spectral lines. Based on this, the empirical coefficient method is used for further correction, so that the test data can reach extremely high precision and accuracy;


4. Data management: professional report generation, query and printing, operator level authorization and other functions supported by the database greatly facilitate enterprise management;


5. Perfect safety interlocking function: cooperate with the protective measures of the hardware circuit to automatically cut off the X-ray in case of unsafe operation to ensure that the operator is not injured;


6. Intelligent software protection to avoid damage to the spectrometer due to improper operation and prolong the service life of the instrument.


7. Stability self check function: it can automatically detect the current stability of the instrument in real time;


8. Multi language operation interface: English, simplified Chinese, traditional Chinese, etc;


9. The original spectrogram comparison and analysis method, and the function of timely warning when supplier materials change.


7、 Parameters of standard equipment around the instrument

CPU: intel dual core memory: 4G

Hard disk: 500G Display: 19 inches

Color inkjet printer

Attached accessories and technical data of instrument

One standard sample

One silver calibration sample

Two sample cups

50 test films

One copy of warranty card

One certificate

One instrument operation manual


8、 Technical support and after-sales service

1. Provide free operation training for customers for one to three days.

2. The whole machine is guaranteed for one year, and the national network after-sales service is guaranteed, and lifelong technical service support is provided.

3. If the instrument is damaged due to non-human factors during the warranty period, it shall be repaired free of charge.

4. Pre sales consultation: pay attention to customer application needs, provide reasonable and professional solutions, and invite customers to experience operation on site.

5. Customer return visit: visit customers quarterly to listen to their suggestions and help them solve problems encountered in the actual operation.

6. Service response: 4-hour response, 24-hour problem solving or standby instrument use.

7. Upgrade service: provide customers with free software upgrade service for life.

Comprehensively provide detection and control scheme services to respond to various environmental protection instructions, which can provide unlimited scalability.

According to user requirements and specific requirements of controlled materials, combined with the technical characteristics of XRF analysis, instrument analysis methods are incorporated into the user's quality management system to provide users with the best detection scheme and assist in establishing material acceptance standards; It also provides risk analysis methods for special materials.
