G450 The mobile phone automatic disassembly and pressing equipment

G450 The Mobile Phone Automatic Disassembly And Pressing Equipment

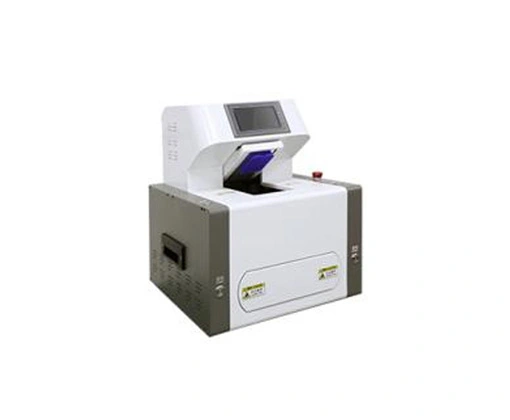

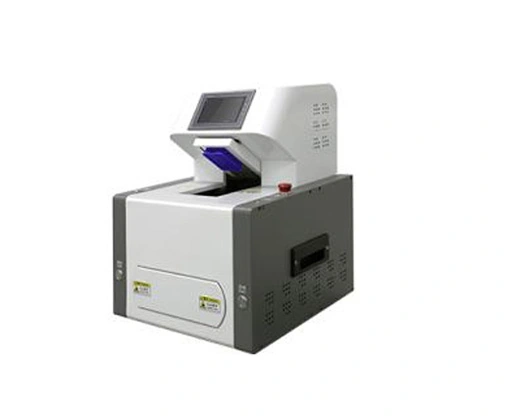

ZM-G450 is a multi-functional mobile phone maintenance equipment, with the functions of removing battery cover, removing TP (including folding screen) and pressing.   For the convenience of user operation, the equipment is equipped with a touch screen,and the parameter setting can be completed on it directly.  For different products can be quickly replaced with different pressure-holding molds, and the pressure-holding time and pressing force can be controlled and adjusted at the same time;   ZM-G450 is light and mini, no need to take up too much space, the total weight is only 45KG, which is suitable for workshops, laboratories maintenance outlets or stores.

Functions of G450 The mobile phone automatic disassembly and pressing equipment

  • 01
    Disassembly function description

    After the mobile phone is put in, press the buttons on both sides to start, the equipment will automatically perform left and right clamping, jacking, rear clamping actions, and complete the adsorption. If the adsorption fails, it will auto-alarm. The equipment equipped with a tension sensor to monitor the disassembly force,and the disassemble angle and speed can be adjusted.

  • 02
    Pressing function description

    After the phone is put in, press the buttons on both sides to start, the drawer will enter and starts to press. When the operation is completed, the drawer will pop up automatically. The press-fit drawer has an anti-pinch function, and the press-fit force can be set arbitrarily from 50N-1600N.

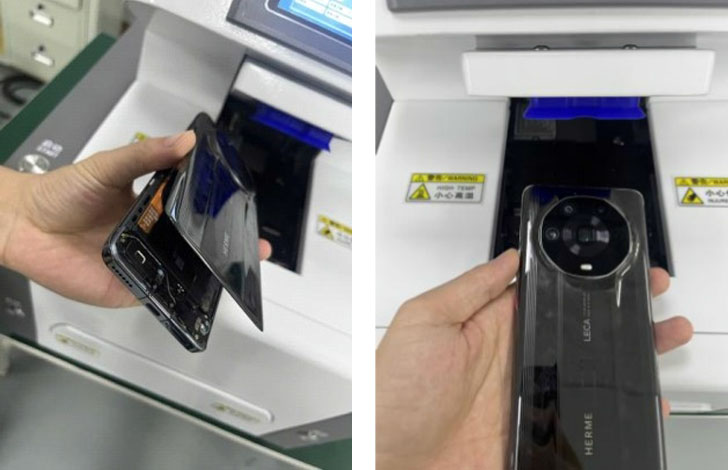

Application Cases




Specification of G450 The mobile phone automatic disassembly and pressing equipment


Specification Parameters

Model

G450

Power Supply

AC100~240v ,50/60Hz

Power

1.2KW(Max)

Product Compatibility

Compatible length and height range:

185mm≥L≥145mm,

95mm≥W≥65mm,

20mm≥H≥5mm

Operation System

Industrial computer WIN10 64bit

Pressing Force

50N-1500N(Adjustable)

Disassemble Force

≥300N

Vacuum Source

Built-in vacuum pump,Vacuum≥90KPa

Temperature Deviation

≤5°C

Safety

Equipped with pressure sensor

 to prevent hand pinching

Net Dimensions

L420xW420xH540mm

Machine Weight

45KG
