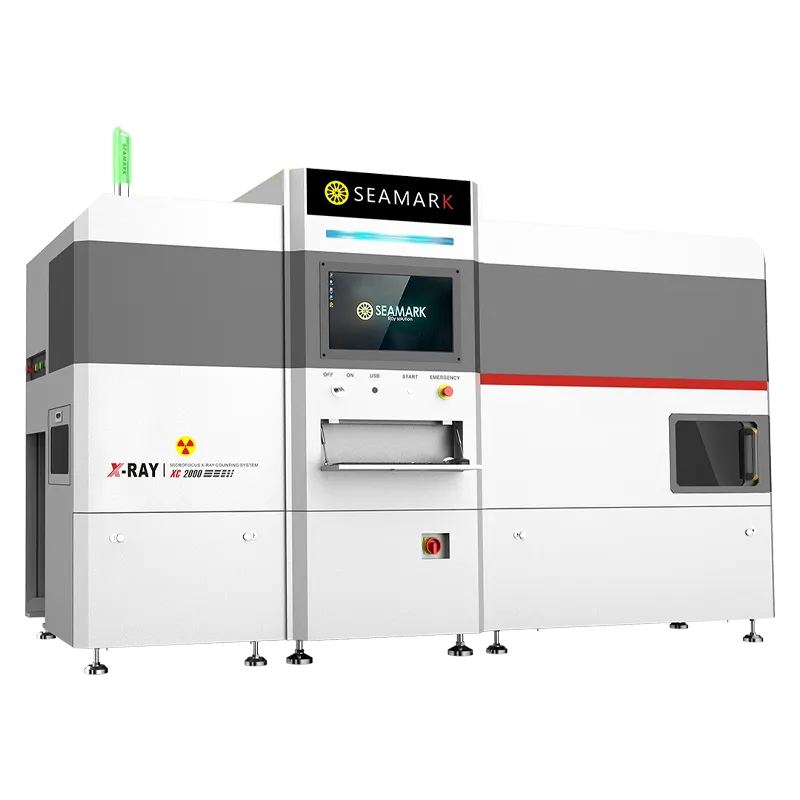

XC2000 Online Reel Counter

XC2000 Inline Component Counting Equipment

XC2000 is an inline automatic counting machine. It uses the X-Ray perspective principle and the independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the reel, it can also upload MES data and automatically print the material labels.


This X-Ray SMD component counter has the functions of automatic code scanning, labeling, and automatic sorting failure, and can automatically load and unload materials to improve work efficiency and save labor.

Product Features

  • With automatic loading/unloading function.

  • Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel.

  • Suitable for all types of chip components, SMD X-Ray counter above 01005.

  • Accuracy of counting reaches more than 99.99%.

  • Measurable reel diameter is 7-15 inches.

  • Innovative detection environment and algorithm with AI function.

  • With automatic sorting of defective products.

  • With automatic printing and attaching material labels.

  • Can realize the function of database storage and MES data upload.


Specification of XC2000 Online Reel Counter




X-Ray Tube Source Specification
TypeSealed Micro-Focus X-Ray Tube
Voltage80 KV
Operating Voltage Range30-80KV
Operating Current Range200 -700μA
Max Output Power56W
Micro Focus Spot Size30μm-40μm



Flat Panel Detector Specification
TypeTFT Industrial Dynamic FPD
Pixel Matrix3072×3072
Field of View427mm×427mm
Resolution3.6Lp/mm
Frame(1×1)6fps
A/D Conversion Bit16bits


DimensionsL3200mm×W1600mm×H2100mm
Input Power220V  10A  50-60HZ
Max Sample Size510mm×650mm
Control SystemIndustrial PC WIN7/ WIN10 64bits
Net WeightApprox 2200KG
Radiation<1μSv/h
