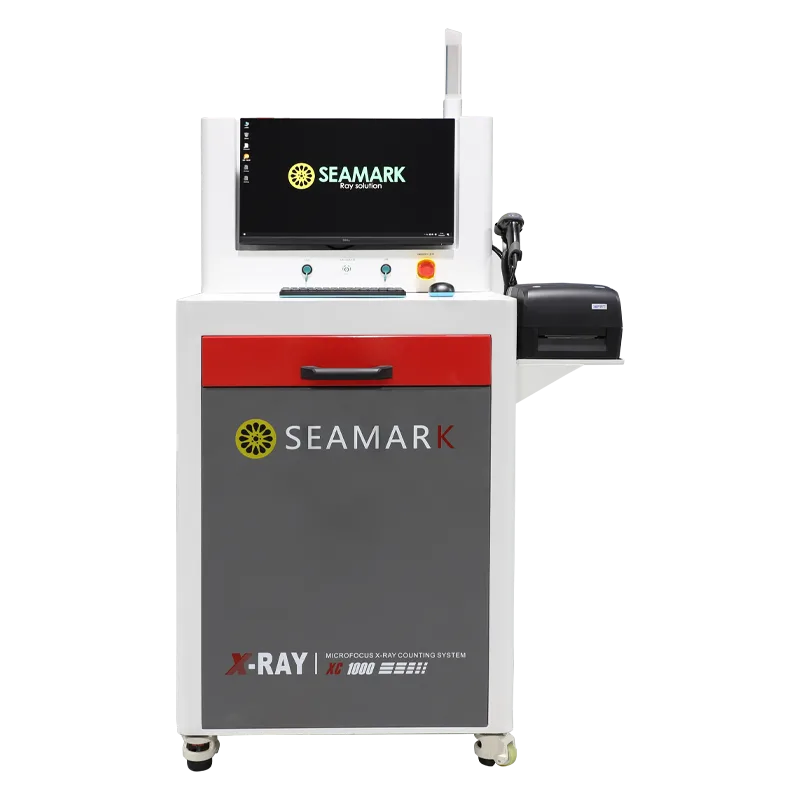

The XC1000(E) Offline X-Ray Automatic Counting Machine utilizes X-ray fluoroscopy imaging and Seamark ZM's self-developed image algorithm software with deep learning (AI) capabilities. It can quickly and accurately calculate the quantity of materials in reels. Simultaneously, it features data interaction with customer systems (such as MES/ERP/WMS) and automatic label printing functions. This machine can significantly improve work efficiency, save labor costs, and realize intelligent and automated warehousing.
Flexible adaptation to any scenario; can be moved to any location such as the warehouse, production line, or shelves.
Compatible with 7-15 inch reels, Trays, bulk materials, and moisture-sensitive packages, with no need to change fixtures.
Effectively identifies overlapping materials, foreign object interference, etc., with a counting accuracy of over 99.9%.
Database of 120,000 global materials, with weekly regular updates of the counting AI model.
| Item | Parameter | Specifications |
| Model No. | XC1000(E) | |
| X-Ray Tube | X-Ray Tube Type | Reflective sealed micro-focus X-ray source |
| Tube Voltage Range | 30KV-80KV | |
| Tube Current Range | 0-700μA | |
| Micro Focus Size | 100μm | |
| Radiation Angle | 45° | |
| Flat Panel Detector | Detector Type | Amorphous silicon flat panel detector |
| Field of View | 427mm x 427mm | |
| Pixel Matrix | 3072 x 3072 | |
| Spatial Resolution | 3.6 Lp/mm | |
| Image Frame Rate (1x1) | 1fps | |
| A/D Conversion Bits | 16bits | |
| Equipment Specifications | Power Voltage | 220V±10% 50-60HZ |
| Rated Power | 0.75KW | |
| Equipment Weight | Approx. 550KG | |
| Dimensions | L738W765H1760mm | |
