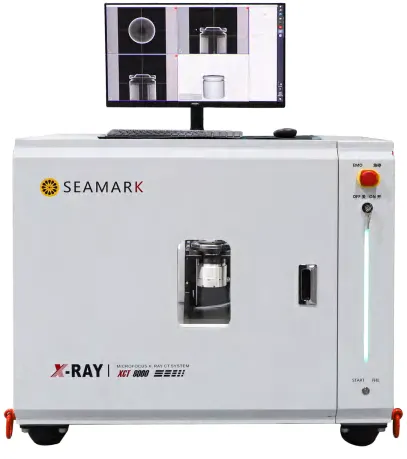

XCT8000 is a desktop small industrial CT/3D X-ray inspectionequipment designed specifically for small-sized samples. It is easyto install and move, suitable for laboratory analysis and on-site use.The machine is equipped with self-developed professional software, supporting 360 degree inspection from any angle, with aspatial resolution of 5um and an optimal defect resolution of 3pm.It can be used for quality inspection, 3D measurement, and non-destructive analysis. With qualitative and quantitative analysissoftware, it can accurately capture the microscopic characteristicsinside the sample, achieve multi angle measurement and analysis,and empower product quality inspection.
Convenient: The device is easy to install and move, and can beanalyzed and used in the laboratory
Inspection Capability: The maximum geometric magnification canreach 20X, and the defect inspection capability is less than 5um360Observation: Observe product defects from any perspectiveCT
360° Function: Observe product defects from any perspective
CT function: cone beam CT function and spiral CT function
Intelligent Inspection Software: equipped with innovative self-developed intelligent visualization Inspection software and CT analysis software
Image Enhancement: New Image enhancement processing and presetfilter algorithm
Hyperfusion Algorithm: image fusion and super-resolution technology,highlighting defect features
Barcode Data Traceability: barcode information correlation detectionresults, supporting integration with ME S system
Customization of Inspection Algorithm: Al intelligent inspectionalgorithm can be customized according to the actual needs of users
Multiple Security Measures: real-time monitoring of radiation levels,safety interlock, automatic shutdown of radiation sources in idle state
Model | XCT8000 | ||
|---|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Reflection sealed microfucus X-ray source | Transmission sealed microfocus X-ray source |
| Tube Voltage Range | 0-130KV | 60-110KV | |
| Tube Current Range | 10-300μA | ||
| Maximum Output Power | 39W | 30W | |
| Flat Panel Detector | Flat Panel Type | Amorphous silicon flat panel detector (optional) | |
| Pixel Matrix | 1536*1536 | ||
| Field of View | 130mm*130mm | ||
| Resolution | 5.5Lp/mm | ||
| Image Frame Rate (1×1) | 20fps | ||
| A/D Conversion | 16bits | ||
| Equipment Performance Parameters | Load Area | 200mm*200mm | |
| Special Resolution | 5μm | ||
| Optional Defect Resolution | 3μm | ||
| Maximum GeometricMagnification | 20X | ||
| Input Power | 220V 7A 50-60Hz | ||
| Dimensions | L1000mm*W638mm*H880mm | ||
| Net Weight | 975kg | ||
