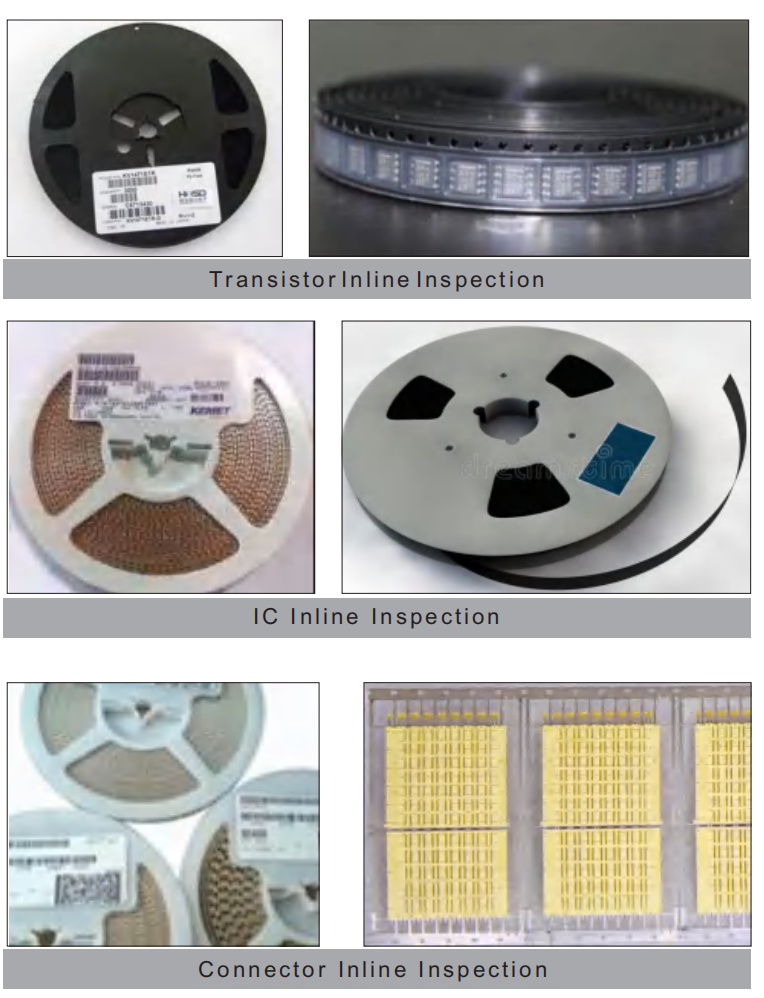

XL5800 is an inline X-ray automatic inspection device equippedwith an innovative self-developed Al intelligent Inspectionalgorithm. It has functions such as inline automatic feeding,automatic Inspection, automatic sorting, and marking ofdefective products. It occupies a small space and is suitable forfully automatic inline inspection of coils and discs and automaticfeeding of production lines, realizing intelligent and automatedproduct inspection.
Miniaturization of Equipment: Small footprint, easy to place and use
Intelligent Automatic Inspection: Equipped with innovative self-developed Alintelligent Inspection algorithm [customizable according to user needs]
Equipment Compatibility: Supports 7-17 inches, 8-80mm wide coils, track width isautomatically adjustable
Fully Automatic Inline Inspection: Equipment automatically detects inline,automatically sorts defective products and marks them
Model | XL5800 | |
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Reflective sealed micro-focus X-ray source |
| Tube Voltage | 0-90KV | |
| Tube Current | 0-200μA | |
| Maximum Output Power | 8W | |
| Micro Focus Size | 10μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous silicon flat panel detector |
| Pixel Matrix | 1536*1536 | |
| Field of View | 130mm*130mm | |
| Resolution | 5.5Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| A/D Conversion | 16bits | |
| Equipment Specification | Input Power | 220V 10A/110V 15A 50-60Hz |
| Operation System | Industrial Computer Win10 64bits | |
| Inspection Sample Width Range | 8-80mm | |
| Dimensions | L2940mm*W1100mm*H19700mm | |
| Net Weight | 1210KG | |
