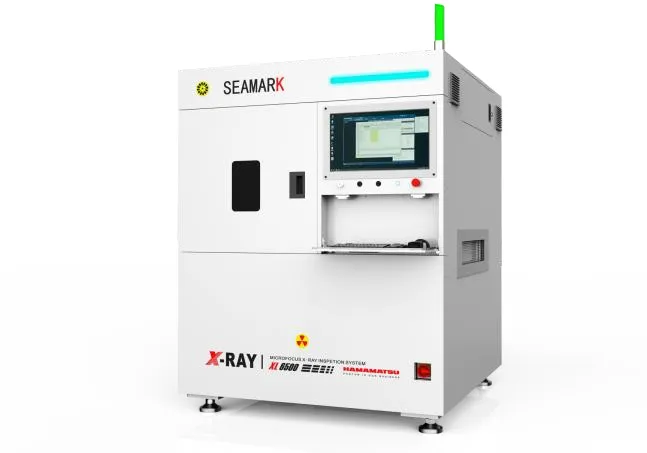

XL6500B is an inline X-ray automatic inspection device thatfeatures strong penetration, high magnification, high resolution,and a large inspection area. It is equipped with an innovativeself-developed intelligent inspection software and Al Inspectionalgorithm, enabling fast and accurate automatic inspection. Thedevice is suitable for full inline automatic inspection of productswith high quality requirements, such as electronicsemiconductors, SMT circuit board assemblies, IGBT modules,LEDs, and precision structural components. It covers variouspackage types such as BGA, QFN, QFP, and SOP, significantlyimproving the inspection efficiency of customer products.
Wide Application Range: Suitable for inline inspection of electronicsemiconductors, SMT circuit board assemblies, 1GBT modules, LEDs, etc.

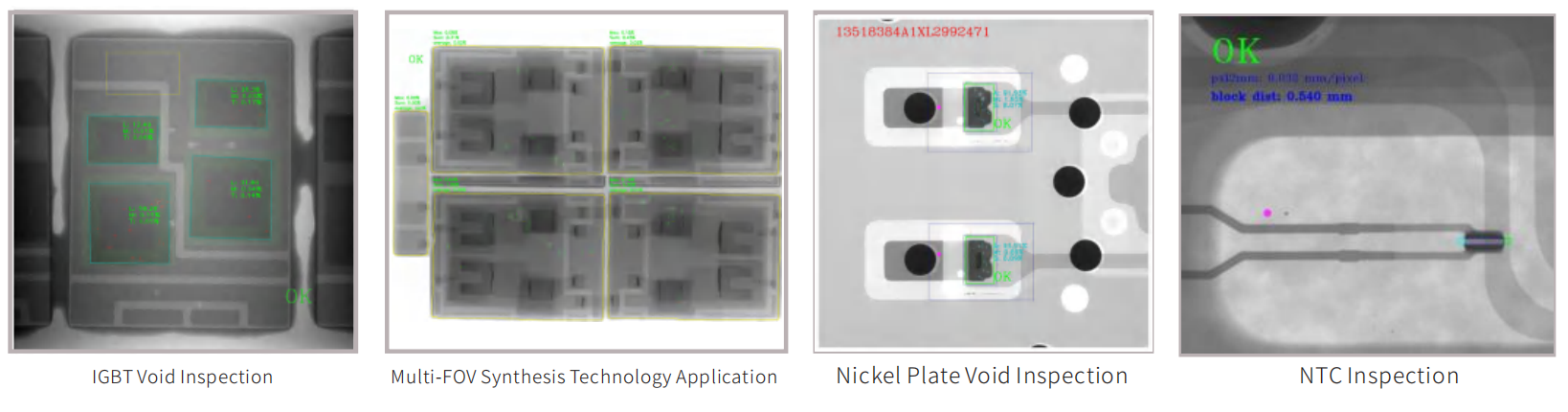

Al Intelligent Inspection: Accurately detects defects such as voids, insufficientsolder, and solder bridging in solder joints.Customized Inspection: Al Inspection models can be customized based on user-specific needs.
Fast Programming: Wizard-based Inspection template editing for simplicity andefficiency
Multiple Safety Protections: Features such as safety interlocks and automatic X-raysource shutdown in idle status.
Barcode Data Traceability: Assoclates barcode
As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact x-ray inspection machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Model | XL6500 | XL6500B | |
|---|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Reflective sealed micro-focus X-ray source | |
| Tube Voltage | 0-90KV | 40-130KV | |
| Tube Current | 0-200μA | 10-300μA | |
| Maximum Output Power | 8W | 39W | |
| Micro Focus Size | 5~50μm | ||
| Flat Panel Detector | Flat Panel Type | Amorphous silicon flat panel detector | |
| Pixel Matrix | 1536*1536 | ||
| Field of View | 130mm*130mm | ||
| Resolution | 5.8Lp/mm | ||
| Image Frame Rate (1×1) | 20fps | ||
| A/D Conversion | 16bits | ||
| Equipment Specification | Input Power | 220V 10A/110V 15A 50-60Hz | |
| Operation System | Industrial Computer Win10 64bits | ||
| Inspection Sample Width Range | 510mm*600mm | ||
| Dimensions | L1500mm*W1550mm*H2160mm | ||
| Net Weight | 2350KG | ||
