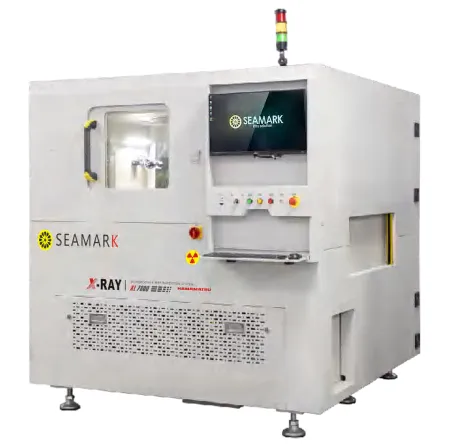

XL7800 is a high-end inline X-ray automatic inspection systemwith strong penetration capability, high magnification, highresolution, large inspection area, and 2.5D imaging. It allowscomprehensive observation of internal defects in products.Featuring open X-ray tube design, its defect Inspectioncapability can reach up to 1um. The system is equipped withinnovative self-developed intelligent inspection software and AlInspection algorithms, enabling fast and precise automaticinspection. It is ideal for full inline automatic inspection ofautomotive power management control components(MCU/ECU/IGBT) and power devices, improving Inspectionefficiency and ensuring product quality and safety forautomotive-grade components.
Application Range: Full automatic inline inspection of products like MCU, ECU,IGBT, and power devices.
360°Inspection: 60-degree tilting flat panel / 360-degree parallel rotation, 2.5D Imaging.
Compatibility: Strong penetration, high resolution, and large inspection area.
Al Intelligent Inspection: Precisely detects defects such as voids, insufficient soldering, and solder bridging.
Customized Inspection: Al Inspection models can be tailored according to user-specific requirements.
Fast Programming:Guide-style inspection template editing for simple and efficient setup
Barcode Data Traceability: Associates barcode information with inspection results, supports integration with MES systems.
Data Management: SPC statistical analysis and verification re-checking.
Multiple Safety Protections: Real-time radiation monitoring, safety interlocks, and automatic X-ray source shutoff in idle states.
Model | XL7800 | |
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Open X-ray source |
| Tube Voltage | 20-160KV | |
| Tube Current | 0-1.0mA | |
| Maximum Output Power | 646W | |
| Micro Focus Size | 0.6-5μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous silicon flat panel detector |
| Pixel Matrix | 1536*1536 | |
| Field of View | 130mm*130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| A/D Conversion | 16bits | |
Input Power | 220V±10% 50-60Hz | |
| Operation System | Industrial Computer Win10 64bits | |
| Net Weight | 4430KG | |
| Dimensions | L1870m*W2150mm*H2300mm | |
