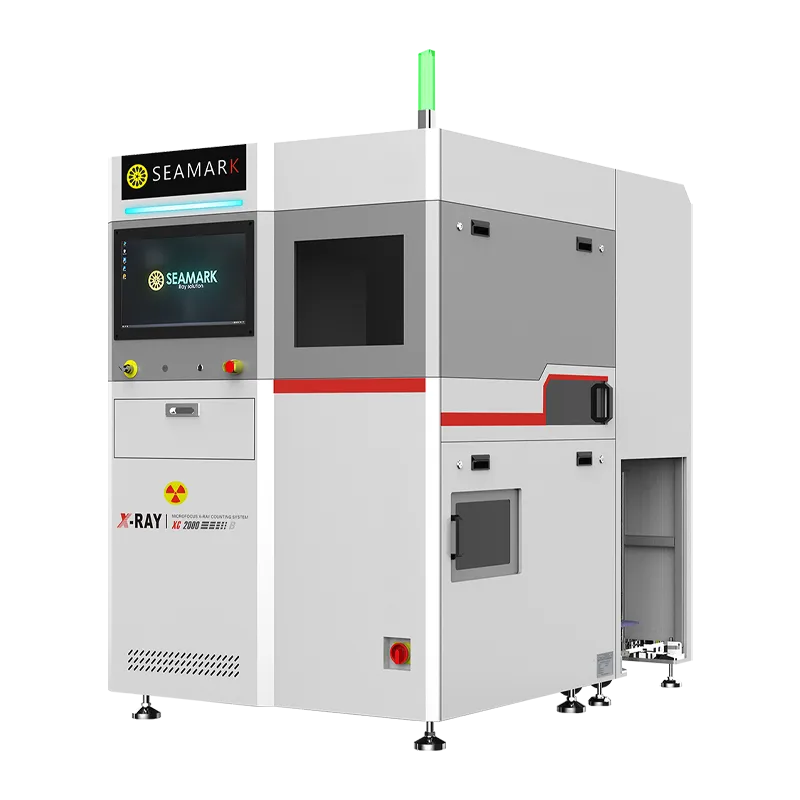

XC2000(B) is a high-speed online automatic component counting system, featuring SEAMARK ZM’s independently developed AI-powered intelligent counting algorithms. With a counting speed of 8–12 seconds per reel, the rotary four-station turntable enables fully automated, high-speed processing of loading, code reading, counting, labeling, verification, and unloading in a single continuous workflow.
Designed for the electronics manufacturing industry, XC2000(B) supports SMT smart warehousing and enables fully automated material inventory management, significantly improving operational efficiency while reducing labor costs.
8–12 seconds per reel; high-speed counting significantly reduces inventory checking time and labor costs
Rotary four-station configuration with automatic defective reel sorting
Seamless integration with MES / ERP / WMS systems for real-time counting data exchange
Automatically generates customer labels based on barcode reading results and matching rules
| Model | XC2000(B) | |
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Reflective sealed micro-focus X-ray source |
| Tube Voltage | 30-80KV | |
| Tube Current | 200-700 μA | |
| Maximum Output Power | 56 W | |
| Micro Focus Size | 33μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous silicon flat panel detector |
| Pixel Matrix | 3072×3072 | |
| Field of View | 427mm×427mm | |
| Resolution | 3.6Lp/mm | |
| Image Frame Rate (1×1) | 1fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Reel Diameter | 7”-15”Tape Reel |
| Reel Height | 8-80mm | |
| Minimum Component | 01005 | |
| System Docking | MES/ERP/WMS, etc. | |
| Input Power | 220V 10A 50-60HZ | |
| Operation System | Industrial Computer WIN10 64-bit | |
| Dimensions | L1894mm × W1864mm × H2100mm | |
| Net Weight | 2200KG |
