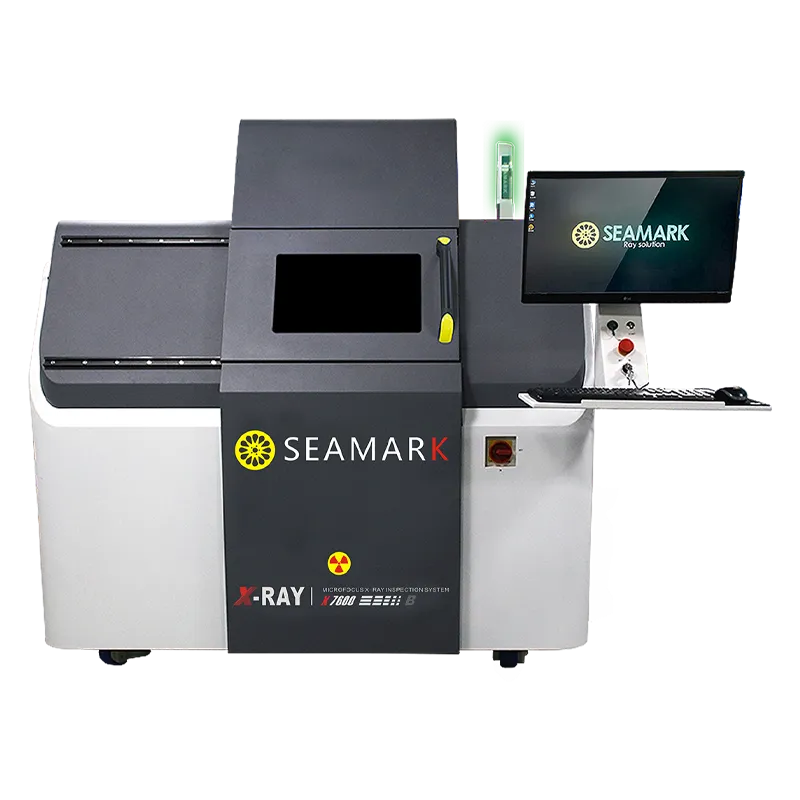

The Seamark X7600B is a high-end offline X-ray inspection system engineered for precision. Powered by a top-tier Japanese Hamamatsu 130kV closed X-ray tube, it delivers sub-micron defect detection for semiconductor packaging, BGA/CSP voids, and IGBT modules.
As one of the most reputable and reliable AOI & AXI manufacturers, Seamark will try its best to provide good products and services for you.
Optional Upgrade: High-Precision 2.5D CT Module
Features 360° sample rotation and up to 60° detector tilt for oblique viewing.

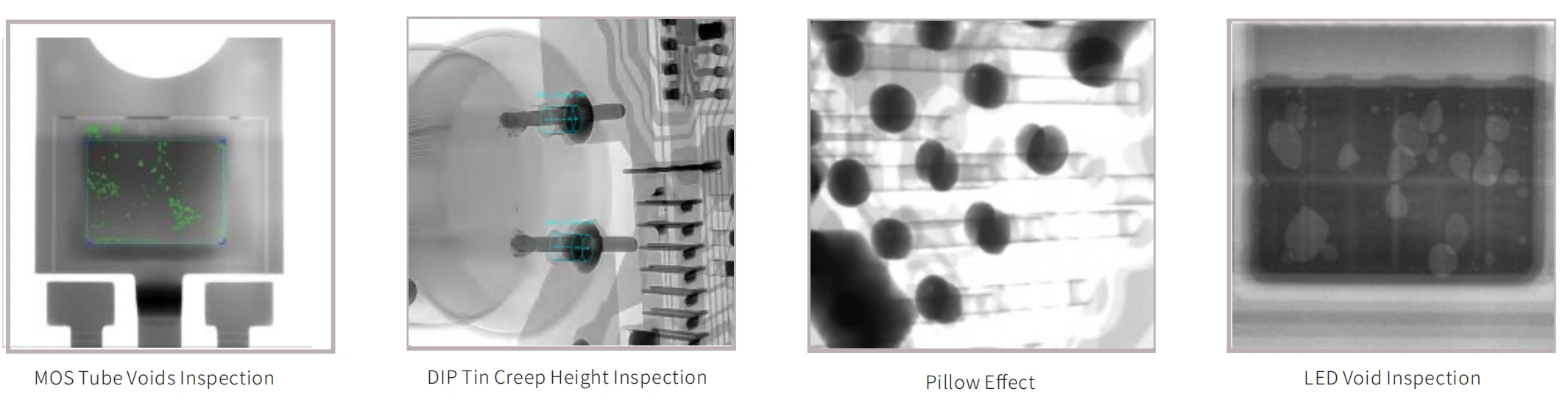

Crystal-clear imaging for detecting defects such as Misalignment, Bridging, BGA Voids, Cold Soldering, and Wire Bond integrity.
Equipped with real-time radiation leakage monitoring and triple-protection mechanisms to guarantee absolute operator safety.
As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
| Model No. | X7600B | |
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Reflective sealed micro-focus X-ray source |
| Tube Voltage | 40-130KV | |
| Tube Current | 10-300μA | |
| Maximum Output Power | 39W | |
| Micro Focus Size | 5μm(at 4W)-40μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate（1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Platform Size | 510mm×510mm |
| Operation System | INdustrial Computer Win10 64bits | |
| Input Power | 220V 10A 50-60HZ | |
| Dimensions | L1700mmxW1770mmxH1800mm | |
| Net Weight | 2050KG |
See also X5600/X6600/X1200/XB8100/XB8200/XD160.
