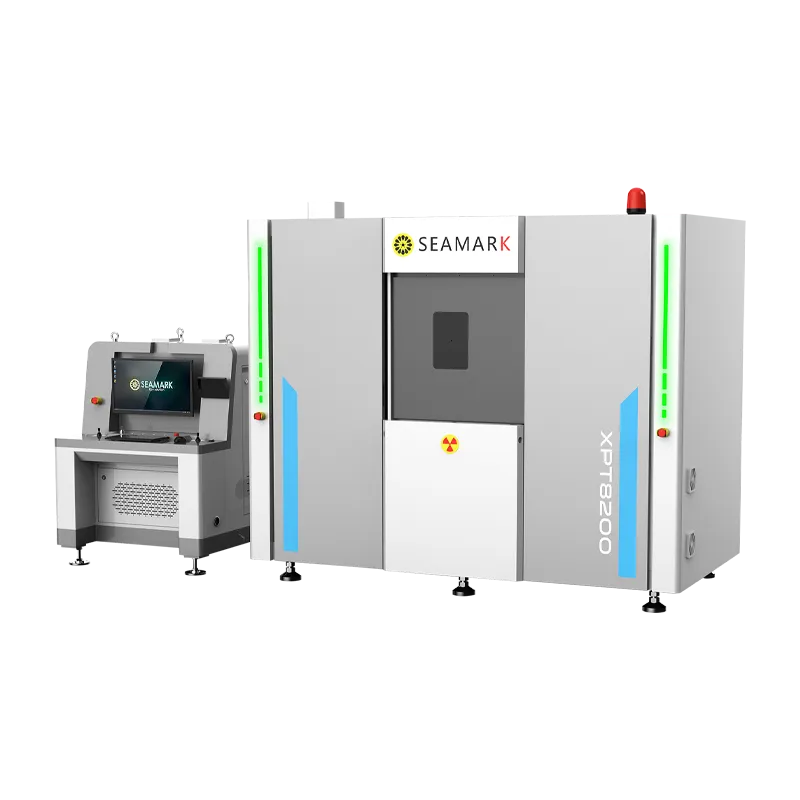

The XPT8200 is a high-resolution 3D X-ray inspection system featuring a COMET open-type X-ray tube design. It supports multiple CT scanning modes, including standard cone-beam CT, extended-field cone-beam CT, and helical CT. The system is suitable for a wide range of applications, such as industrial manufacturing, quality control, process optimization, electronic components, and chip inspection, accommodating samples of various sizes and materials.
Model | XPT8200 | |
|---|---|---|
| X-Ray Tube | Type | Open micro-focus transmission X-ray source (optional) |
| Voltage Range | 20-225KV | |
| Current Range | 0.01mA-3.0mA | |
| Maximum Power | 32-280W | |
| Minimum FOD (Focus-to-Object Distance) | 6.75mm | |
| Micro-Focus Size | 4μm | |
| Flat Panel Detector | Type | Amorphous silicon flat panel detector (optional) |
| Pixel Matrix | 3072×3072 | |
| Field of View (FOV) | 430×430 | |
| Image Frame Rate (1×1) | 16fps | |
| A/D Conversion | 16bits |
